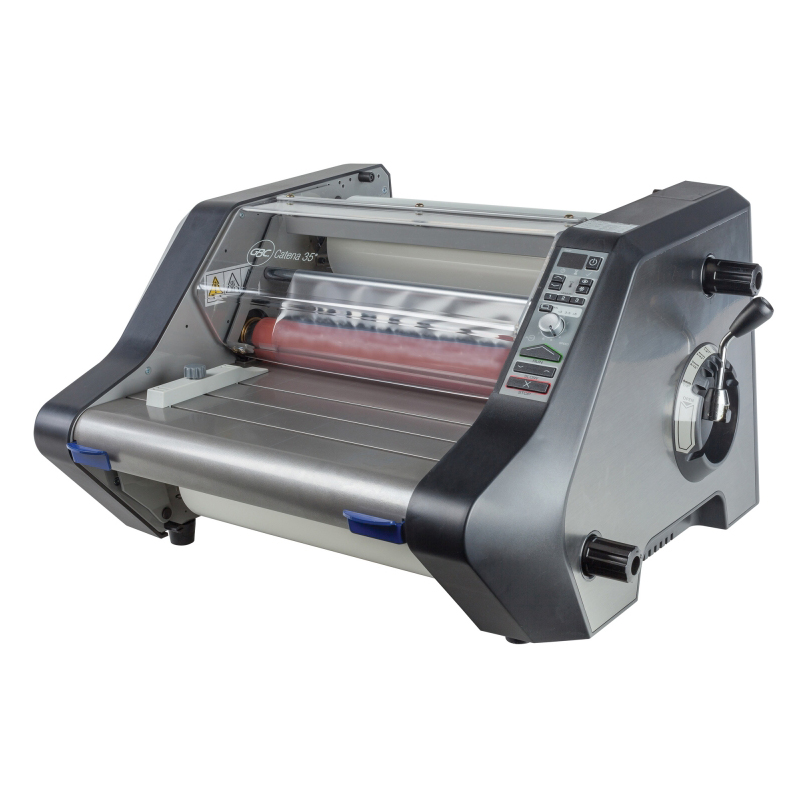

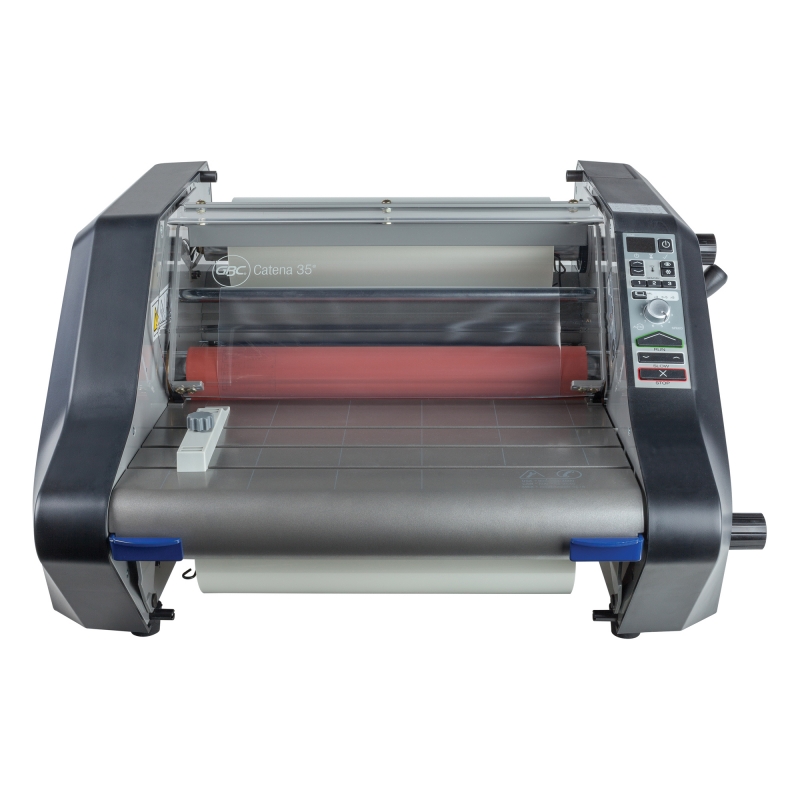

GBC Heavy Duty Laminator
Model: Catena 35
The new and improved Catena 35 tackles your most demanding jobs with unmatched ease, versatility and efficiency. With its small footprint, this new and improved laminator encapsulates and mounts jobs up to 305mm wide without taking up much space in your office, school or small print shop. Plus, its increased 6mm mounting gap ensures that mounting to foam core is quick and frustration-free.
FEATURES
- Document size: Banner / A3 Max (305mm)
- Film capability: Up to 25 – 250 Micron (Nap-Lam®, Octiva® Thermal films)
- Variable speed – Up to 2500 mm/min
- Core diameter: 1” (included) and 2.25" (Optional)
- Pivoting table offers a place to rest heavy film rolls while inserting film on the shaft
- AutoGrip aluminum, lightweight shafts make it simple to remove and add film
- AutoSpeed takes the guesswork out of laminating and ensures the best output every time
- Additional stop button on the back of the machine allows the user to view the output and to easily stop the machine
- Mount to boards up to 6mm thick
- Adjustable temperature control up to 149ºC
- Optional rewind kit separates the release liner and enables the use of PSA films for cold applications
- Programmable preset keys store your most commonly used temperature settings
- Rear trimmer makes trimming after lamination hassle-free
SPECIFICATIONS
- Max. Document Size: Banner / A3 (Max. 305mm)
- Pouch Capacity (mic): 25-250
- Warm-up Time (min): <10
- Speed (mm/min): 300~2500
- No. of Rollers: 4
