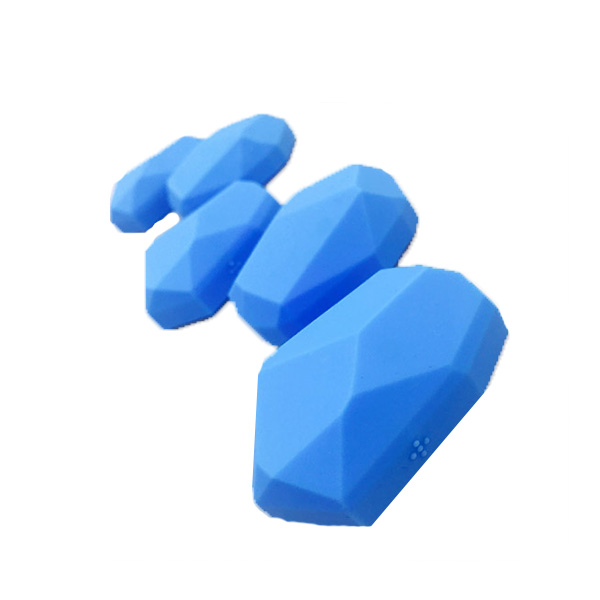

FingerTec Time Beacon
Time Beacon is a battery powered device that taps on Bluetooth Low Energy, BLE, a protocol that is embedded in most smartphones, tablets and other devices of today. BLE protocol allows beacons to transfer files, photos or any digital information with minimal power after a simple and secure pairing process. Time Beacon broadcasts its unique identities or information to nearby smartphones, tablets and other devices via BLE through one-way communication from the beacon to the devices only.
SPECIFICATIONS
- SIZE (H X W X L) : 60 mm x 20 mm x 42 mm
- WEIGHT : 40g
- POWER : 3VDC button battery (CR2477)
- COMMUNICATION : 3VDC button battery (CR2477)
- CHIPSET : Type I – Nordic 51822, Type II – Texas Instrument Ti CC 2541
- MOBILE OS SUPPORT : iOS 6.0 and above, Android 4.3 and above
- WORKING MODE : 3 (Sleep mode, Connect Mode, Disconnect mode)
- WORKING DISTANCE : 10m
- TX POWER : 4 selections (-23dBm, -6dBm, 0dBm, +4dBm)
- OPERATING TEMPERATURE : -10 ~ 85 C
- STORAGE TEMPERATURE : -10 ~ 85 C
- MOUNTING METHOD : Adhesive sticker
- CERTIFICATIONS : CE, FCC, RoHS
