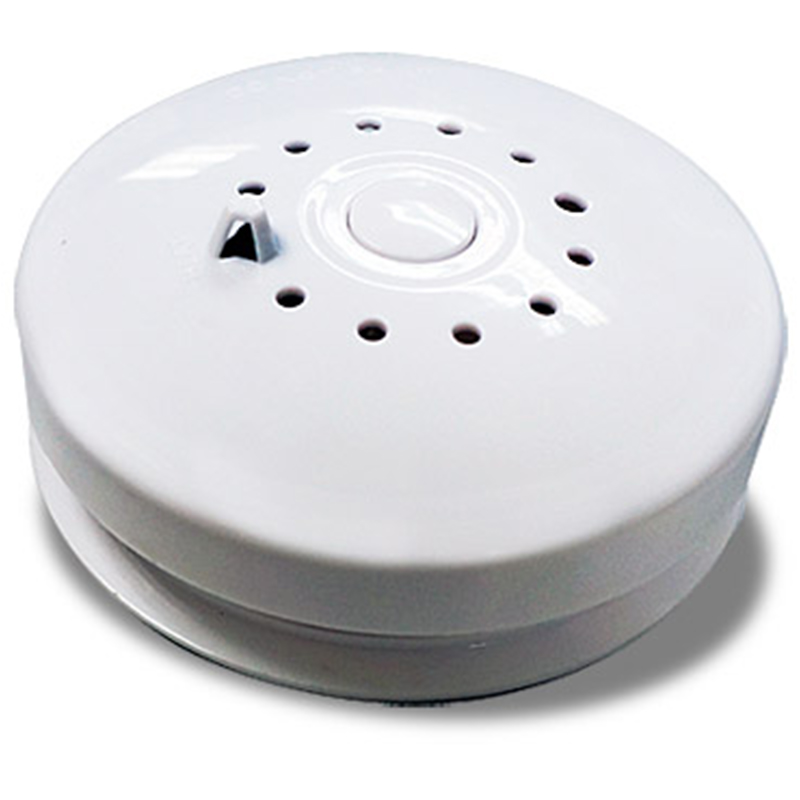

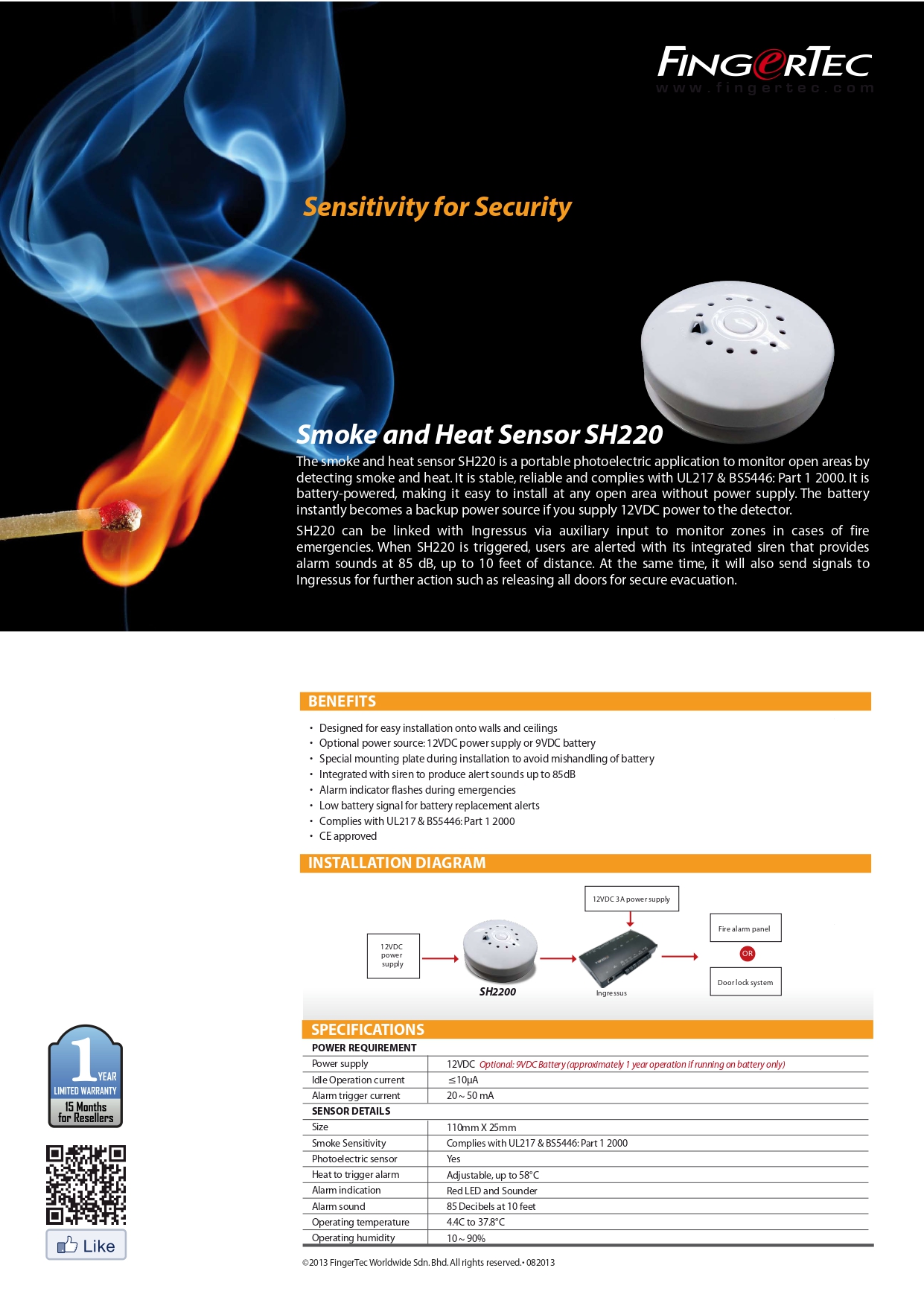

FingerTec Smoke Sensor
SPECIFICATIONS
- Power supply : 12VDC Optional: 9VDC Battery (approximately 1 year operation if running on battery only)
- Idle Operation current : =10µA
- Alarm trigger current : 20 ~ 50 mA
- Size : 110mm X 25mm
- Smoke Sensitivity : Complies with UL217 & BS5446: Part 1 2000
- Photoelectric sensor : Yes
- Heat to trigger alarm ; Adjustable, up to 58°C
- Alarm indication : Red LED and Sounder
- Alarm sound : 85 Decibels at 10 feet
- Operating temperature : 4.4C to 37.8°C
- Operating humidity : 10 ~ 90%
