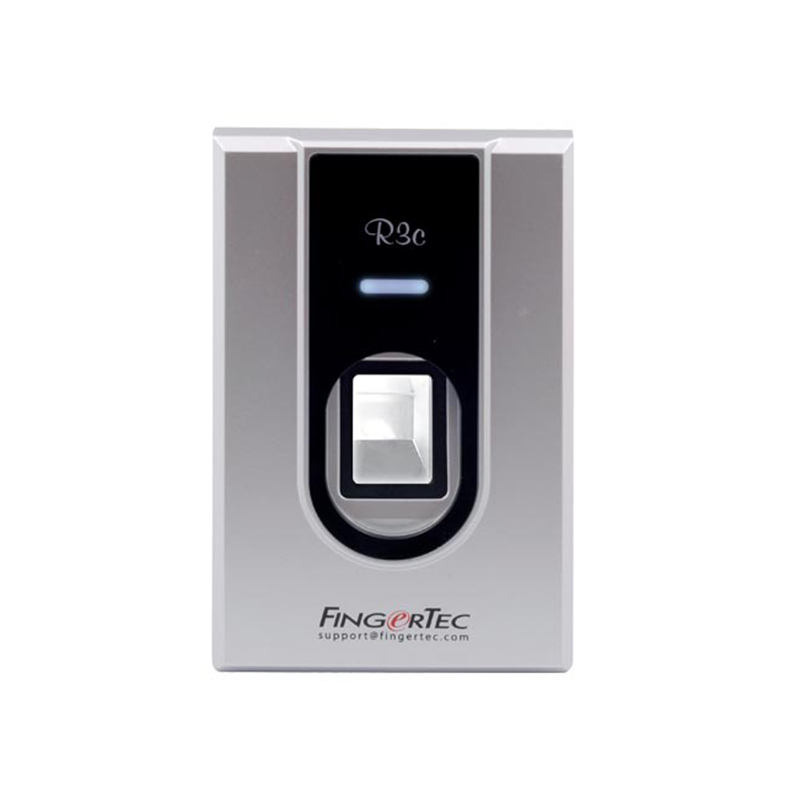

FingerTec Fingerprint Time Attendance Slave Reader
Model: R3c
SPECIFICATIONS
- MODEL : R3c
- SURFACE FINISHING : Acrylonitrile butadiene styrene (ABS)
- TYPE OF SCANNER : Non coated optical scanner
- MICROPROCESSOR : Managed by master
- MEMORY : Managed by master
- ALGORITHM : Supports BioBridge VX 10.0
- PRODUCT DIMENSION (L X W X H) : 80mm x 40mm x 125mm (w/o housing)
- PRODUCT WEIGHT : 0.14 kg
STORAGE
- Fingerprint templates : Storage in master terminal
- Transactions : Storage in master terminal
ENROLLMENT & VERIFICATION
- Methods : Fingerprint (1:N) & card
- Recommended fingerprint per user ID : Managed by master
- Fingerprint placement : Any angle
- Verification time (sec) : Managed by master
- FAR (%), FAR (%) : Managed by master
CARD TECHNOLOGY
- RFID: 64-bit, 125kHz : Yes
- MIFARE: MFIS50, 13.56MHz : Made To Order
COMMUNICATIONS
- Method : RS485 (Connects to Master Terminal)
OPERATING ENVIRONMENT
- Temperature (°C) : 0 ~ 45
- Humidity (%) : 20 ~ 80
- Power input : Managed by master
ACCESS CONTROL
- EM lock driving output : Managed by master
- Alarm output : Managed by master
- Anti Passback : Managed by master
