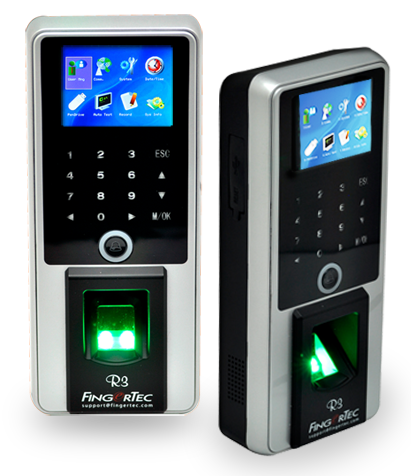

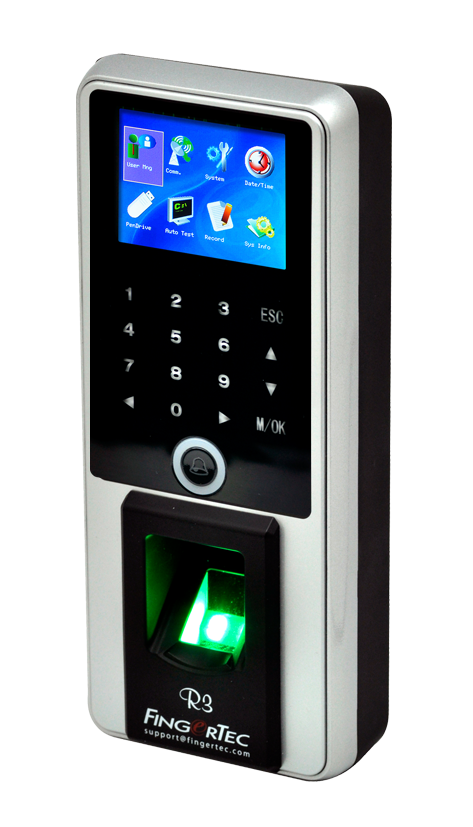

FingerTec Fingerprint Time Attendance & Door Access System
Model: R3
SPECIFICATIONS
- Model : R3
- Surface Finishing : In-mould labelling (IML), poly carbonate (PC) & acrylonitrile butadine systene (ABS)
- Type Of Scanner : Non coated optical scanner
- Microprocessor : 400 MHz
- Memory : 256 MB flash memory & 32 MB SDRAM
- Algorithm : BioBridge VX 10.0

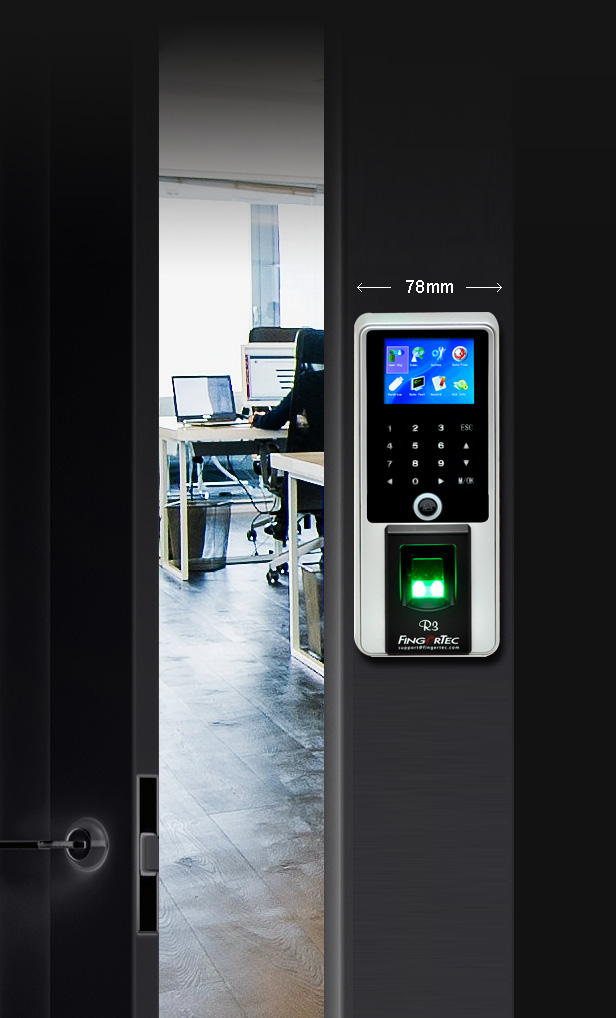

- Product Dimension (L X W X H) mm : 78 x 32 x 190
- Fingerprint templates : 3000
- Cards : 10000
- Transaction : 100000
ENROLLMENT & VERIFICATION
- Methods : Fingerprint (1:1, 1:N), card & password
- Recommended fingerprint per user ID : 2
- Fingerprint placement : Any angle
- Verification time (sec) : < 1
- FAR (%) : < 0.001
- FRR (%) : < 0.1
CARD TECHNOLOGY
- RFID : 64-bit, 125kHz,
- MIFARE : MFIS50/S70, 13.56MHz
COMMUNICATIONS
- Method : TCP/IP, RS232, RS485, USB disk
- Baud rates : 9600, 19200, 38400, 57600, 115200
- Wiegand : 26-bit input/output
OPERATING ENVIRONMENT
- Temperature (°C) : 0 ~ 45
- Humidity (%) : 20 ~ 80
- Power input : DC12V 3A
TIME ATTENDANCE
- Siren : Yes (relay output)
- Work codes : Yes
MULTIMEDIA
- Voice : Yes
- Display : 2.4” 3k color LCD
- Short messaging : Yes
ACCESS CONTROL
- EM lock driving output : DC12V 3A / relay output
- Alarm output : NO / NC
- Anti Passback : Yes
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese,
Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian.
Other languages are available upon request.
SOFTWARE LANGUAGE
English, Arabic, Chinese Traditional / Simplified, Spanish, Thai, Russian, Malay,
German & Indonesian
