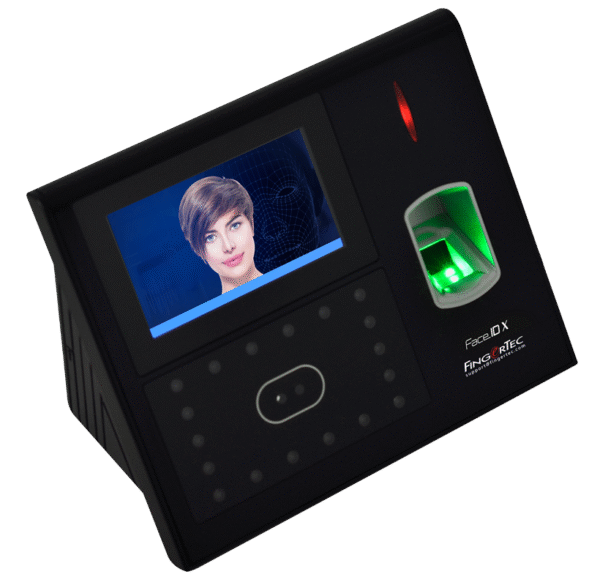

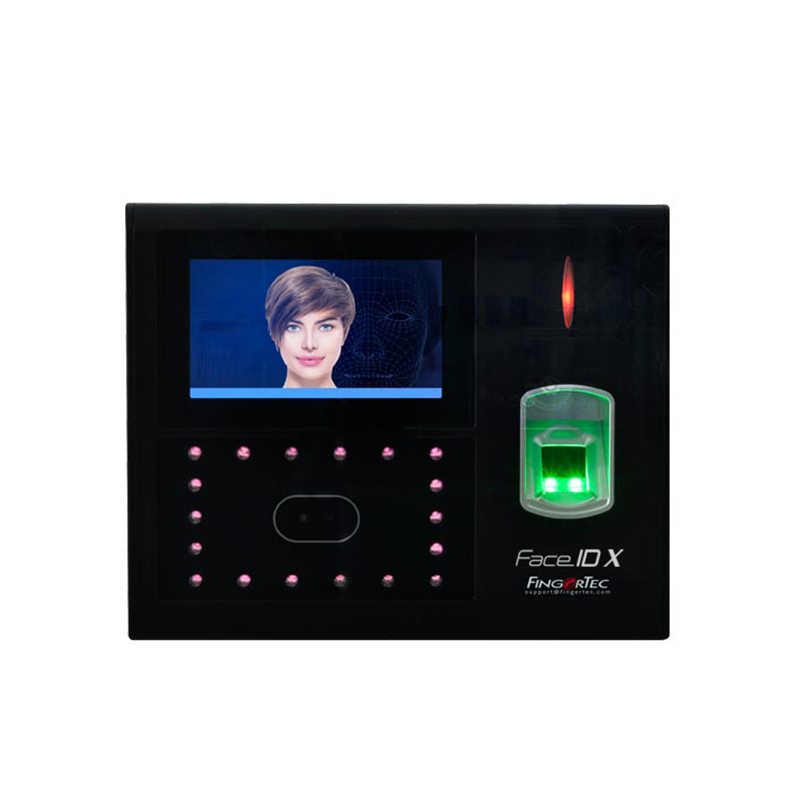

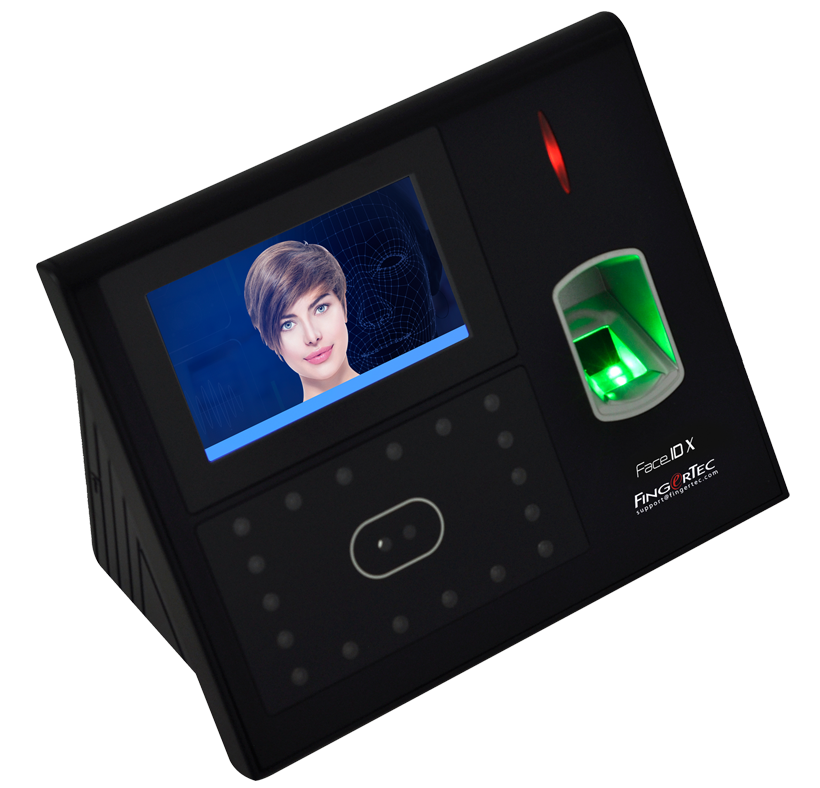

FingerTec Face Recognition Face ID X

FingerTec Face ID X Face recognition & Thumbprint Time Attendance System is a device that can recognize your face and fingerprint and record your attendance. It uses a special camera and a smart algorithm to scan your face and thumbprint and match them with the stored data.

FingerTec Face ID X Face recognition & Thumbprint Time Attendance System works fast and accurately, even in low light conditions. It is easy to use and can connect to a computer or a network.

FingerTec Face ID X is suitable for small and medium businesses that need a secure and contactless way to track their employees’ time attendance. It can store up to 3,000 face templates, 10,000 thumbprint templates, 10,000 cards, and 1 million time attendance transaction log in FingerTec Face ID X memory, which is large enough for ever-growing corporate transactions.

FingerTec Face Recognition & Fingerprint Time Attendance System

Model: Face ID X



SPECIFICATIONS



  • MODEL :  Face ID X
  • SURFACE FINISHING :  Acrylonitrile butadiene styrene (ABS) & acrylic
  • TYPE OF SCANNER :  Hi-res infrared camera & fingerprint scanner
  • MICROPROCESSOR :  1.2GHz
  • MEMORY :  128MB Nand flash & 64MB Nand flash
  • ALGORITHM :  Face BioBridge VX8.0, Fingerprint BioBridge VX9.0 / 10.0
  • PUSH TECHNOLOGY :  Yes
  • PRODUCT DIMENSION (L X W X H), mm :  194 x 110 x 145



STORAGE



  • Fingerprint templates :  10,000
  • Face templates :  3,000 (1:N), 30,000(1:1)
  • Cards :  10,000
  • Transactions :  1,000,000




ENROLLMENT & VERIFICATION



  • Methods :  Face (1:1, 1:N), fingerprint (1:1, 1:N), card & password
  • Recommended fingerprint per user ID :  2
  • Fingerprint placement :  Any angle
  • Verification time (sec) :  Face < 2, Fingerprint < 1
  • Fingerprint :  FAR < 0.0001%, FRR < 0.1%
  • Face :  FAR < 0.01%, FRR < 0.1%




CARD TECHNOLOGY



  • RFID: 64-bit, 125kHz, RF output power (EN300-330) :  Yes
  • MIFARE: MFIS50/S70, 13.56MHz :  Make to order
  • HID: HID 1325, 26-bit, 125kHz :  Make to order



COMMUNICATIONS



  • Method :  TCP/IP, RS232, RS485, USB disk (Optional WiFi & 3G)
  • Baud rates :  9600, 19200, 38400, 57600, 115200
  • Wiegand :  26-bit output



OPERATING ENVIRONMENT



  • Temperature (°C) :  0 ~ 45
  • Humidity (%) :  20 ~ 80
  • Power input :  DC 12V 3A
TIME ATTENDANCE



  • Siren :  Internal and external
  • Work codes :  Yes
  • Fast transaction checking :  Yes
MULTIMEDIA



  • Display :  4.3” 65K color TFT touch screen panel
  • Photo-ID :  Yes
  • Short messaging :  Yes
  • Day light saving timer :  Yes
  • Internal backup battery :  Yes (DC 12V, 2000mAh)



ACCESS CONTROL



  • EM lock driving output :  DC 12V / relay output
  • Alarm output :  NO/NC
VOICE / DISPLAY LANGUAGE (TERMINAL)
  • English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian.
  • Other languages are available upon request.
