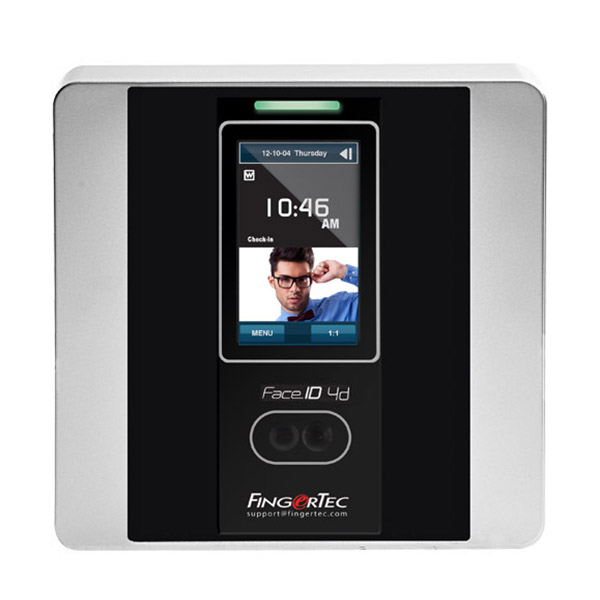

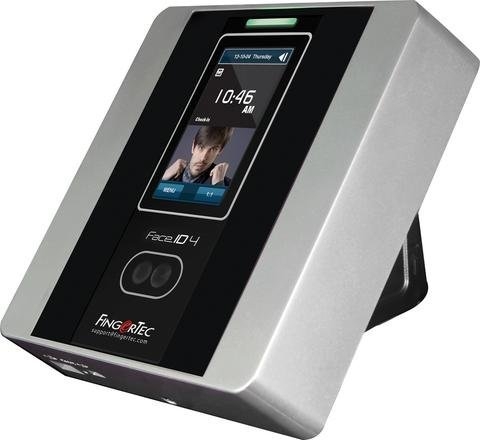

FingerTec Face Recognition Time Attendance & Door Access System
Model: Face ID 4d
SPECIFICATIONS
- Model : Face ID 4d
- Surface Finishing : Acrylonitrile butadiene styrene/ polycarbonate blend
- Type Of Scanner : High resolution infrared camera
- Microprocessor : 800 MHz
- Memory : 256 MB flash memory & 128 MB SDRAM
- Algorithm : Face BioBridge VX 8.0
- Product Dimension (L X W X H) mm : 148 x 148 x 122
- Face templates : 800
- Cards : 10000
- Transaction : 100000
ENROLLMENT & VERIFICATION
- Methods : Face (1:1, 1:N), card & password
- Recommended fingerprint per user ID : 2
- Verification time (sec) : < 2
- FAR (%) : < 0.01
- FRR (%) : < 0.1
CARD TECHNOLOGY
- RFID : 64-bit, 125kHz,
- MIFARE : MFIS50/S70, 13.56MHz
COMMUNICATIONS
- Method : TCP/IP, USB disk, USB client ( Optional WiFi)
- Baud rates : 9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
- Temperature (°C) : 0 ~ 45
- Humidity (%) : 20 ~ 80
- Power input : 12V DC 3A
TIME ATTENDANCE
- Siren : Built-in and external
- Work codes : Yes
- Fast transaction checking : Yes
MULTIMEDIA
- Greeting Voice : Yes
- Display : 3.0” 65k color TFT touch screen panel
- Photo ID : Yes
- Short messaging : Yes
- Photo Capture : Yes
- Day light saving timer : Yes
ACCESS CONTROL
- EM lock driving output : 12 DC/ relay output
- Alarm output : NO/NC
- Door Sensor : Yes
- Anti Passback : Yes
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified,
Cantonese, Vietnamese, Japanese, Spanish, Portuguese (Portugal), Turkish.
Other languages are available upon request.
