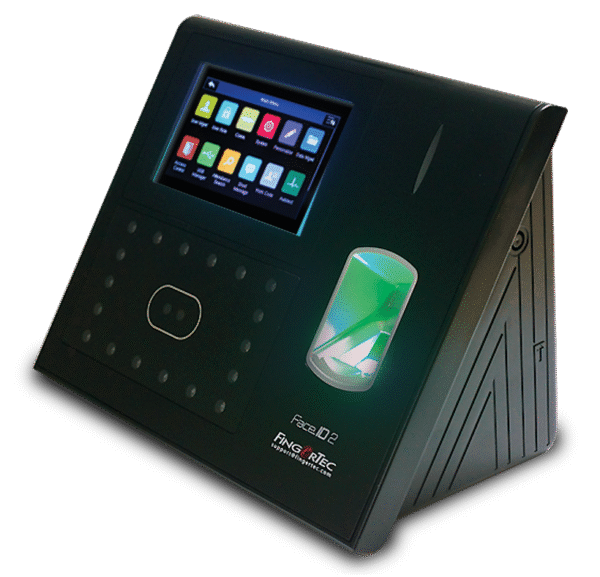

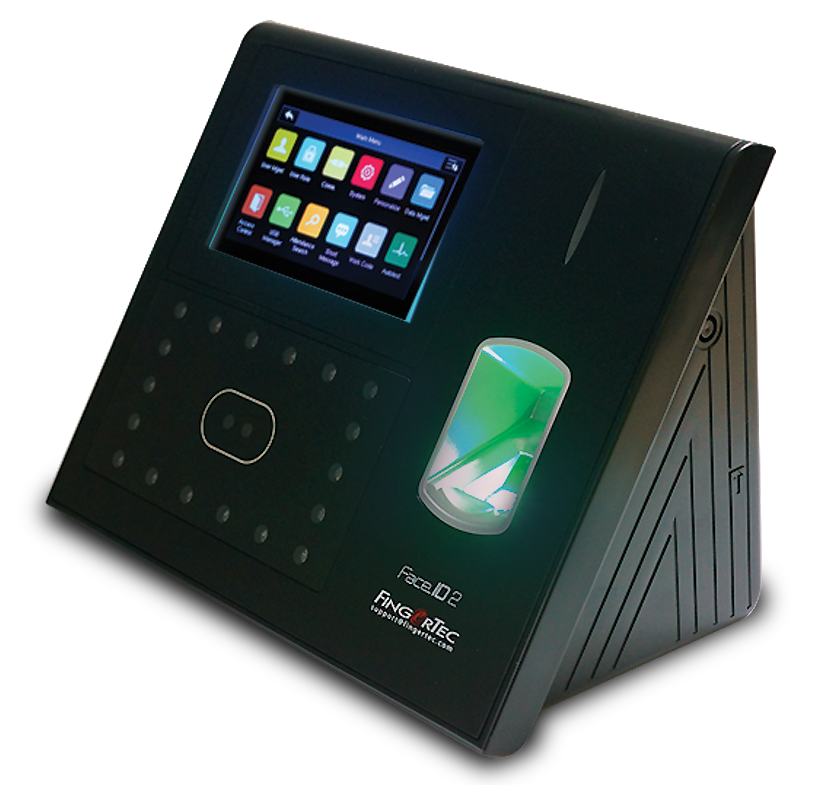

FingerTec Face Recognition & Fingerprint Time Attendance System (FMM)
Model: Face ID 2 (FMM)
SPECIFICATIONS
- Model : Face ID 2 (FMM)
- Surface Finishing : Acrylonitrile butadiene styrene (ABS) & acrylic
- Type Of Scanner : High resolution infrared camera & fingerprint scanner
- Microprocessor : 800 MHz
- Memory : 256 MB flash memory & 128 MB SDRAM
- Algorithm : High resolution infrared camera & fingerprint scanner
- Product Dimension (L X W X H) mm : 207 x 120 x 145
- Fingerprint templates : 10000
- Face templates : 1200
- Cards : 10000
- Transaction : 200000
ENROLLMENT & VERIFICATION
- Methods : Face (1:1, 1:N), fingerprint (1:1, 1:N), card & password
- Recommended fingerprint per user ID : 2
- Fingerprint placement : Any angle
- Verification time (sec) : Face < 2, Fingerprint < 1
- FAR (%) : Fingerprint < 0.0001%, Face < 0.01%
- FRR (%) : Fingerprint < 0.1%, Face < 0.1%
CARD TECHNOLOGY
- RFID: 64-bit, 125kHz, RF output power (EN300-330)
- MIFARE: MFIS50/S70, 13.56MHz
- HID: HID 1325, 26-bit, 125kHz
COMMUNICATIONS
- TCP/IP, RS232, RS485, USB disk, (Optional WiFi, GPRS & 3G)
- Baud rates : 9600, 19200, 38400, 57600, 115200
- Wiegand : 26-bit output
OPERATING ENVIRONMENT
- Temperature (°C) : 0 ~ 45
- Humidity (%) : 20 ~ 80
- Power input : DC 12V 3A
TIME ATTENDANCE
- Siren : Built-in and external
- Work codes : Yes
- Fast transaction checking : Yes
MULTIMEDIA
- Display : 4.3” 65k color TFT touch screen panel
- Photo ID : Yes
- Short messaging : Yes
- Day light saving timer : Yes
- Internal backup battery : Yes (DC 12V, 2000mAh)
ACCESS CONTROL
- EM lock driving output : DC 12V / relay output
- Alarm output : NO/NC
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified,
Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian.
Other languages are available upon request.
