FingerTec Access Control

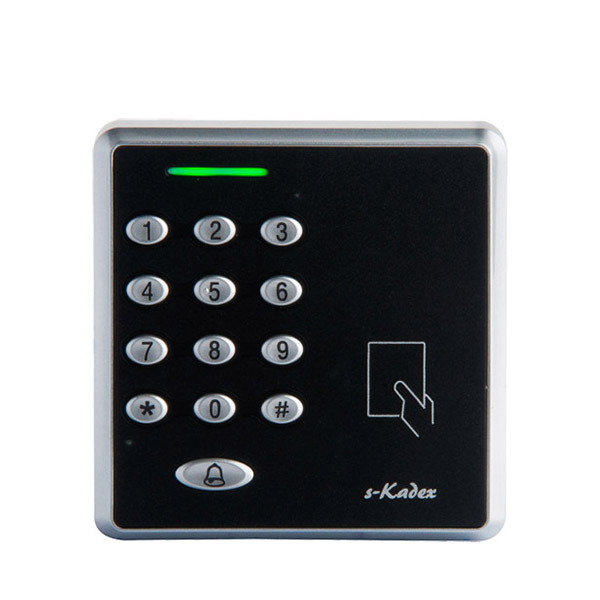

Model: s-Kadex (DISCONTINUED)
SPECIFICATIONS
- Model : s-Kadex
- Surface Finishing : Acrylonitrile butadiene styrene (ABS)
- Type Of Antenna : Card
- Microprocessor : 400 MHz
- Memory : 32 MB flash memory
- Algorithm : BioBridge VX 10.0
- Product Dimension (L X W X H) mm : 88 x 25 x 88
- Cards : 500
- Password : 8 Sets (max length 4-digits per password)
ENROLLMENT & VERIFICATION
- Methods : Card & password
- Password length (digits) : Max 4
- Verification time (sec) : < 1
CARD TECHNOLOGY
- RFID : 64-bit, 125kHz
- MIFARE: MFIS50/S70, 13.56MHz
OPERATING ENVIRONMENT
- Temperature (°C) : 0 ~ 45
- Humidity (%) : 20 ~ 80
- Power input : DC12V 3A
ACCESS CONTROL
- EM lock driving output : DC12V / relay output
- Alarm output : NO only
- Door Sensor : Yes (NO/NC)
GROUP VERIFY TYPE
- Password only : Yes
- Card only : Yes
- Card or password : Yes
- Card and password : Yes
