FingerTec Access Control QR110

The FingerTec QR Reader QR110 is a straightforward access control and time attendance system that simplifies entry management. With its scanning capabilities, it can read QR codes as well as various types of cards.

Administrators can easily issue credentials to authorized personnel, and FingerTec QR Access Control & Time Attendance System QR110 accurately records all Access & Attendance activities for secure data storage and future reference.

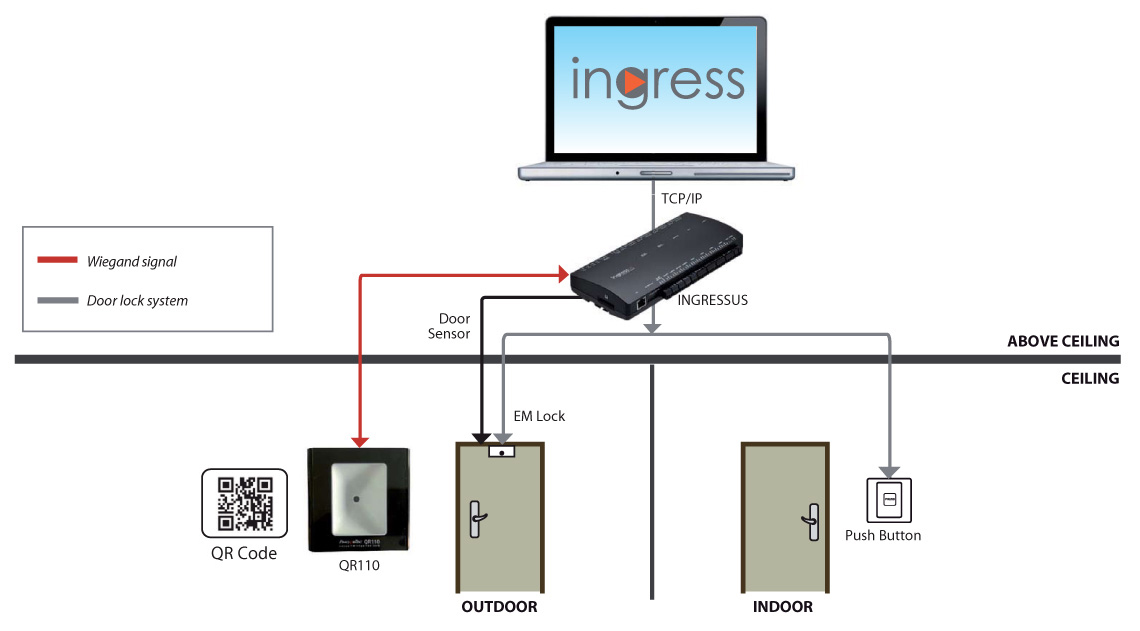

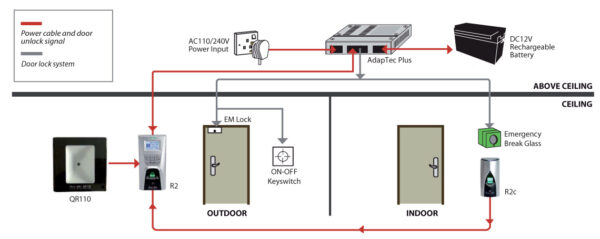

By linking to the FingerTec Ingressus Door Access controller, the QR110 regulates access to your premises effectively. It offers a simple, affordable, and convenient solution for access control, ensuring ease of use for both administrators and users alike.

With the FingerTec QR Access Control & Time Attendance System QR110, managing access to your space has never been easier.

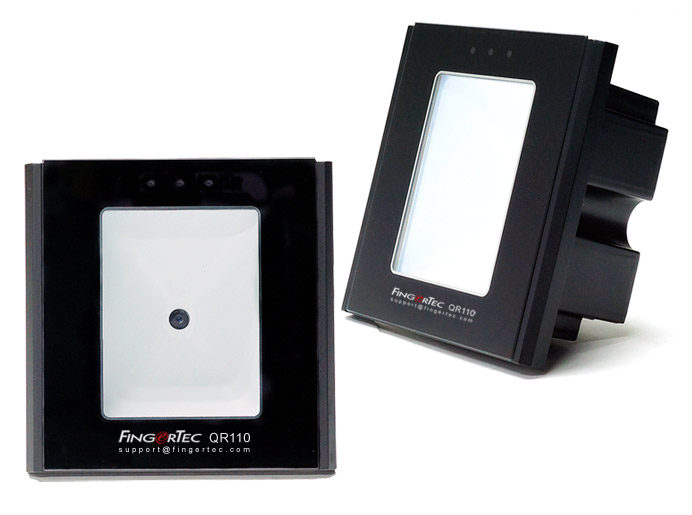

FingerTec QR Access Control & Time Attendance System

Model: QR110

Simply scan your way with QR110 to conveniently obtain access to your space. This simple reader does not only scan QR Codes, it also scans various types of card too.

  • MODEL : QR110
  • DIMENSION (L X W X H), mm :  86 x 4 x 86
  • CREDENTIALS (V) :  QR Code, RFID EM Card 125KHz
  • OUTPUT FORMAT :  Wiegand 26/34
  • COMMUNICATION DISTANCE :  Wiegand <100m
  • RS485 :  < 1200m
  • WORKING VOLTAGE :  DC 9 ~ 16V
  • WORKING CURRENT :  < 100mA

WORKING ENVIRONMENT
  • Temperature (°C)  :  -10 ~ 70
  • Humidity (%)  : 10 ~ 70 (Indoor use)

SENSING DISTANCE
  • QR Code (cm)  : 3~10
  • Cards (cm)  : 2~3
  • READING SPEED :  < 0.2 seconds
  • READING INTERVAL :  <0.5 seconds

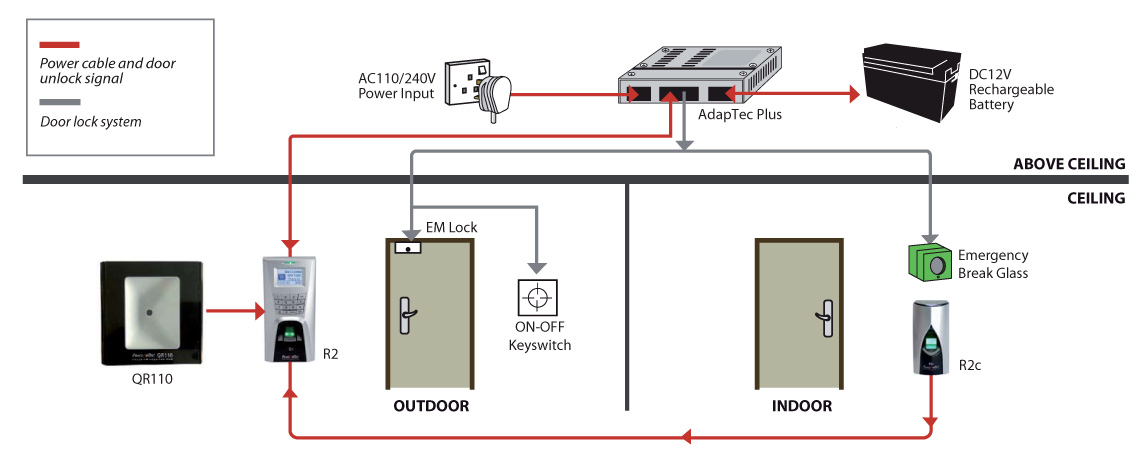

  • SUPPORT :  Q2i, R3, R2, Face ID 3, Kadex, m-Kadex, Ingressus I/II/IV
