FingerTec Access Control (Discontinue)

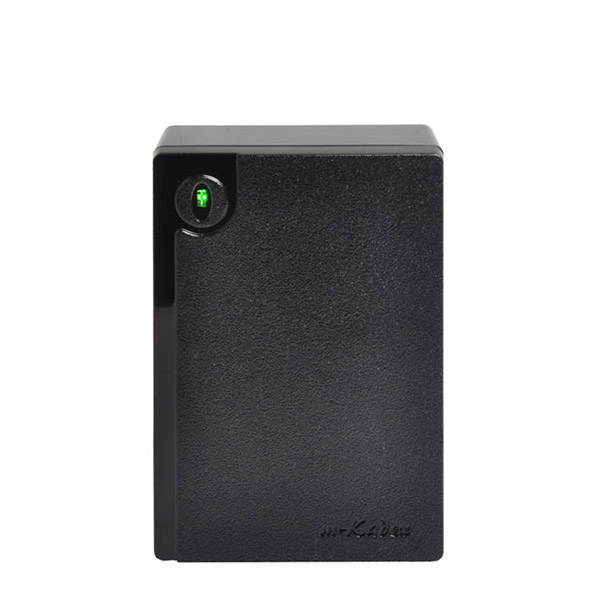

Model: m-Kadex
SPECIFICATIONS
- Model : m-Kadex
- Surface Finishing : Polycarbonate
- Type Of Antenna : RFID
- Microprocessor : 400 MHz
- Memory : 4 MB flash memory & 32 MB SDRAM
- Algorithm : BioBridge VX 9.0
- Product Dimension (L X W X H) mm : 92 x 29 x 134
- Cards : 30000
- Transaction : 50000
ENROLLMENT & VERIFICATION
- Methods : Card
- Card per user ID : 1
- Reading distance, mm : 40 ~ 80 (RFID, HID), 30 ~ 50 (Mifare)
- Verification time (sec) : < 1
CARD TECHNOLOGY
- RFID: 64-bit, 125kHz, RF output power (EN300-330)
- MIFARE: MFIS50/S70, 13.56MHz
- HID: HID 1325, 26-bit, 125kHz
COMMUNICATIONS
- Method : TCP/IP, RS232, RS485, USB disk
- Baud rates : 9600, 19200, 38400, 57600, 115200
- Wiegand : 26-bit input / output
OPERATING ENVIRONMENT
- Temperature (°C) : 0 ~ 45
- Humidity (%) : 20 ~ 80
- Power input : DC12V 3A
ACCESS CONTROL
- EM lock driving output : DC12V / relay output
- Alarm output : NO / NC
- Anti passback : Yes.
