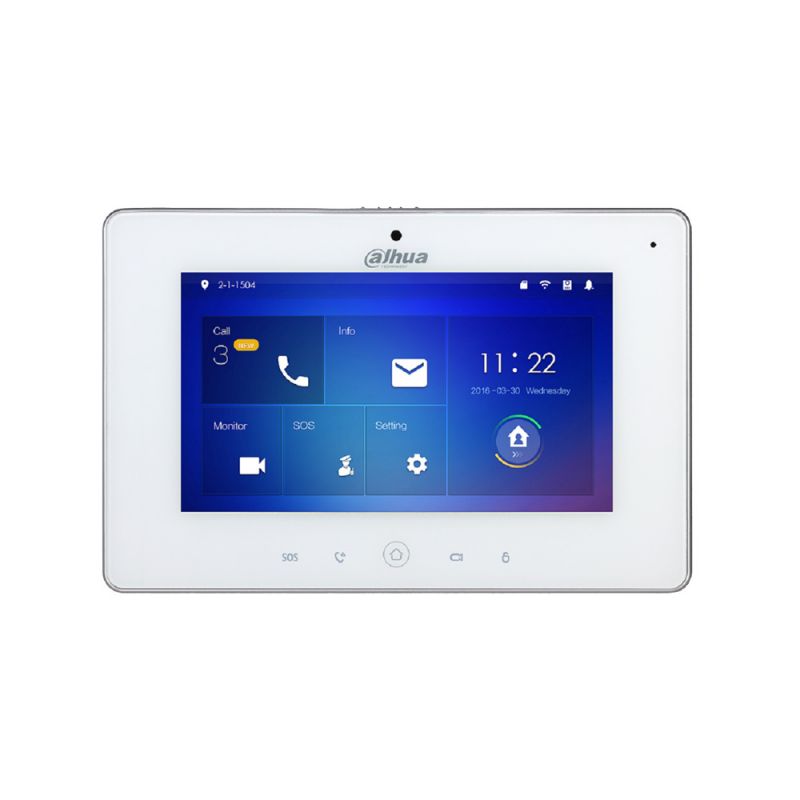

DAHUA Wi-Fi Video Intercom Indoor Monitor
Model: VTH5221DWC-S1
FEATURES
- Wi-Fi connection
- 7" TFT Capacitive Touch Screen (1024×600) – SIP1.0/2.0
- IPC Surveillance + Alarm integration.
- Micro SD supported (Max 32GB); Alarm 6/1, RS485, TCP/IP 100Mbps
SPECIFICATION
- Main Processor : Embedded Micro Processor
- Operation System : Embedded LINUX OS
- Video Compression : H.264
- Image Sensor : 1/4” 1MP CMOS
- Lens : 2.2mm
- Angle of View : D:125° H:105°
- Audio Compression : G.711
- Audio Input : All-direction Microphone
- Audio Output : Built-in Loudspeaker
- Bidirectional Talk : Support Dual-way Bidirectional talk
- LCD Screen : 7“ 1024×600, Capacitive
- Input : Touch buttons
- Wired Zones : 6 on-board zones
- Wireless Zones : 6 wireless zones
- Alarm Out : 1
- RS485 : 1
- Wi-Fi : IEEE802.11b/g/n
- Ethernet : 10M/100Mbps Self-adaptive
- Network Protocol : TCP/IP
- Memory Slot : Micro SD, Max 32GB
- Power : DC 12V, PoE（802.3af)
- Power Consumption : Standby ≤1W, Work ≤7W
- Working Temperature : ﹣10°C~+55°C
- Relative Humidity : 10%~90%RH
- Dimensions : 215.0mm×140.0mm×21.0mm
- Weight : 0.8Kg
