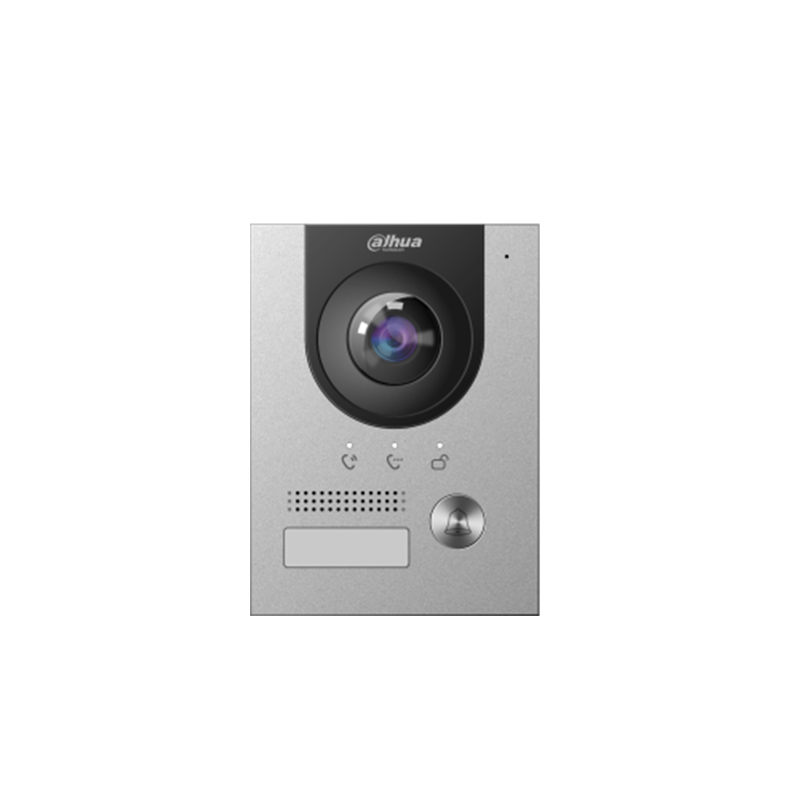

DAHUA Video Intercom Outdoor Station
Model: VTO2202F-P
FEATURES
- Anodized alumimum front panel
- CMOS low illumination 2MP HD colorful 160° fisheye camera
- Video intercom function
- Access control function that supports two locks
- Mobile phone app, talk to the visitor or unlock the door remotely on your phone
- Compatible with 2-wire interface & RJ45 interface
- IK07&IP65
- Support H.265
- Support surface and flush mount
- PoE
SPECIFICATION
- Main Processor : Embedded processor
- Operating System : Embedded Linux Operation System
- Button Type : Mechanical
- Interoperability : ONVIF; CGI
- Network Protocol : SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
- Camera : 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera
- Field of View : Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
- Focal Length : 1.9 mm
- WDR : 120 dB
- Noise Reduction : 3D NR
- Video Compression : H.265
- Video Resolution : 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps)
- Video Frame Rate : 25 fps
- Video Bit Rate : 256 Kbps to 4 Mbps
- Light Compensation : Auto IR
- Day/Night : Auto (ICR)
- Audio Compression : G.711u
- Audio Input : 1 channel
- Audio Output : Built-in speaker
- Audio Mode : 2-way voice communication
- Audio Enhancement : Echo suppression/digital noise reduction
- Audio Bit Rate : 16 KHz, 16 Bit
- Status Indicator Light : 3
- Electric Lock : 1
- Alarm Output : 1
- Power Output : 1-ch 12 VDC 100mA
- Exit Button : 1
- Door Status Detection : 1
- Lock Control : 1
- Network Port : One RJ45 10M/100M network port
- Appearance color : Silver
- Power Supply : Dahua 2-wire switch (max. power supply distance 50 m)
- DC 48V 1A : Standard PoE
- Power Adapter : Optional
- Installation : Flush/surface mount
- Certifications : CE; FCC; UL
- Accessory : Flush/surface mount
- Product Dimensions : 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
- Protection : IK07; IP65
- Operating Temperature : –30°C to +60°C (–22°F to 140°F)
- Operating Humidity : 10%–90% (RH, non-condensing)
- Operating Altitude : 0 m–3000 m
- Power Consumption : ≤ 12W
- Net Weight : 0.35 kg (0.77 lb)
- Gross Weight : 0.4 kg (0.88 lb)
