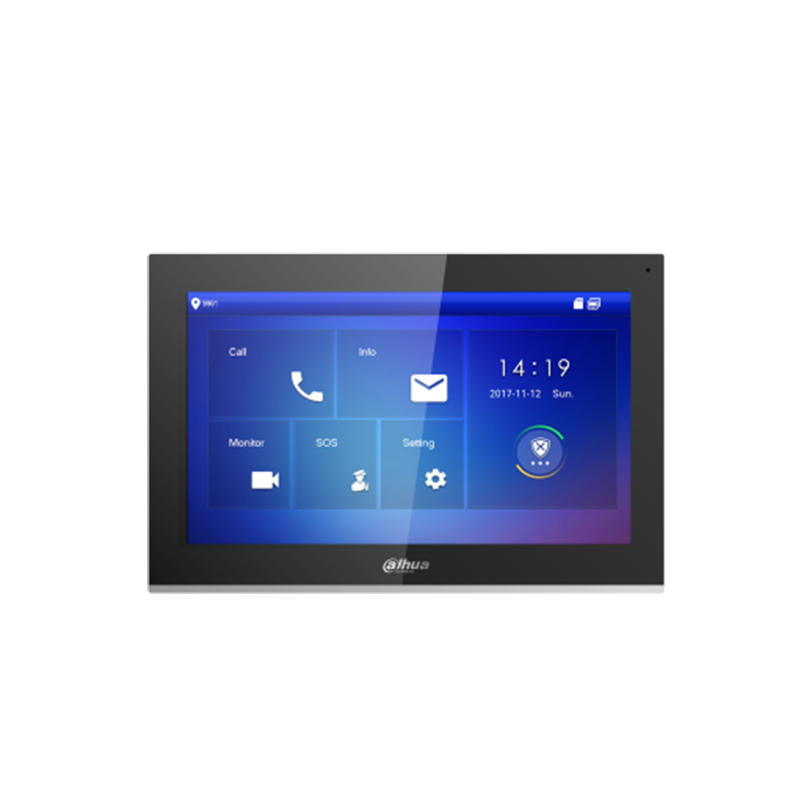

DAHUA IP Video Intercom Indoor Monitor
Model: VTH5441G
FEATURES
- IP Indoor Monitor – 10" TFT Capacitive Touch Screen (1024×600) – SIP2.0
- IPC Surveillance + Alarm integration. SIP 2.0 ready
- Embedded 8GB SD card for Record & Snapshot

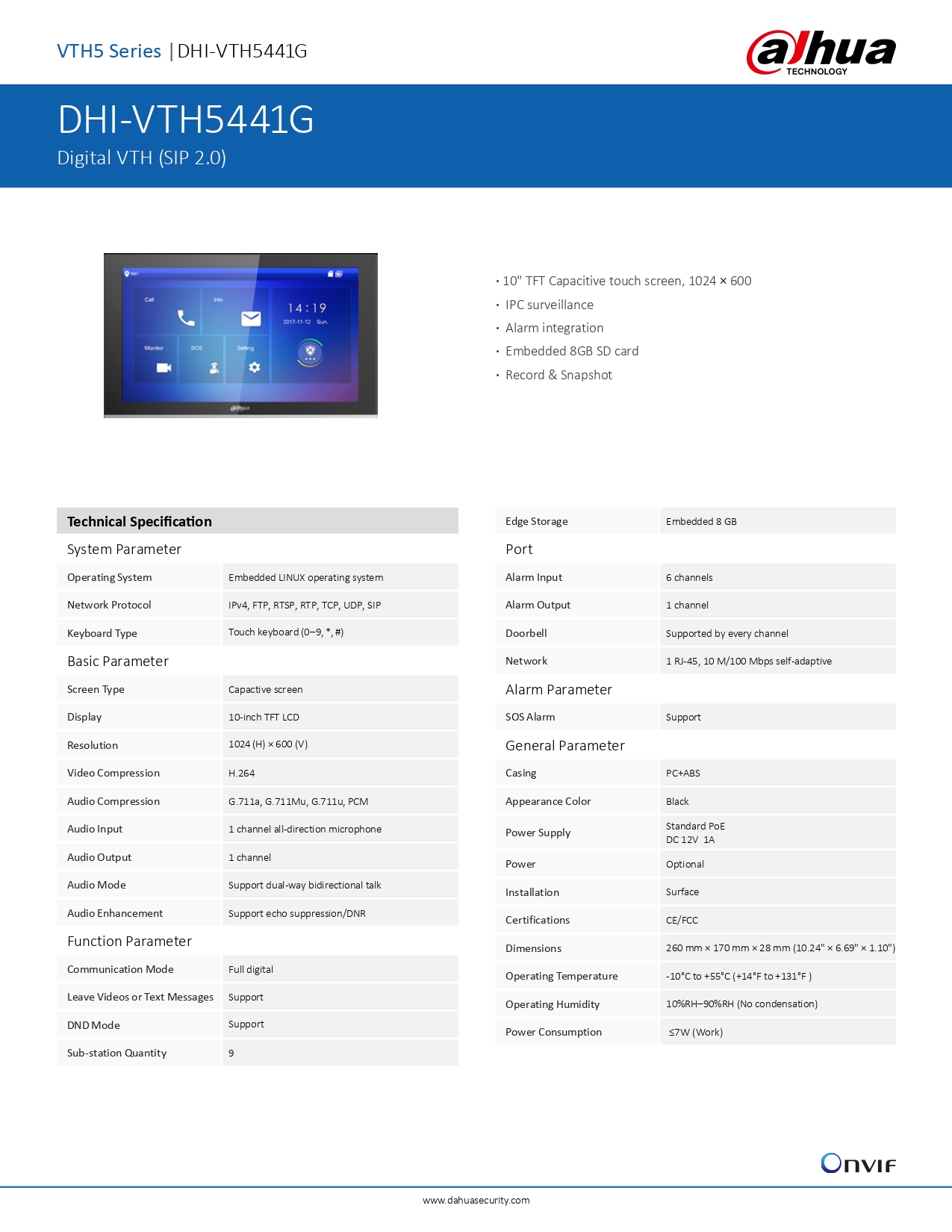

SPECIFICATION
- Operating System : Embedded LINUX operating system
- Network Protocol : IPv4, FTP, RTSP, RTP, TCP, UDP, SIP
- Keyboard Type : Touch keyboard (0–9, *, #)
- Screen Type : Capactive screen
- Display : 10-inch TFT LCD
- Resolution : 1024 (H) × 600 (V)
- Video Compression : H.264
- Audio Compression : G.711a, G.711Mu, G.711u, PCM
- Audio Input : 1 channel all-direction microphone
- Audio Output : 1 channel
- Audio Mode : Support dual-way bidirectional talk
- Audio Enhancement : Support echo suppression/DNR
- Communication Mode : Full digital
- Leave Videos or Text Messages : Support
- DND Mode : Support
- Sub-station Quantity : 9
- Edge Storage : Embedded 8 GB
- Alarm Input : 6 channels
- Alarm Output : 1 channel
- Doorbell : Supported by every channel
- Network : 1 RJ-45, 10 M/100 Mbps self-adaptive
- SOS Alarm : Support
- Casing : PC+ABS
- Appearance Color : Black
- Power : Supply Standard PoE DC 12V 1A
- Power : Optional
- Installation : Surface
- Certifications : CE/FCC
- Dimensions : 260 mm × 170 mm × 28 mm (10.24" × 6.69" × 1.10")
- Operating Temperature : -10°C to +55°C (+14°F to +131°F )
- Operating Humidity : 10%RH–90%RH (No condensation)
- Power Consumption : ≤7W (Work)
