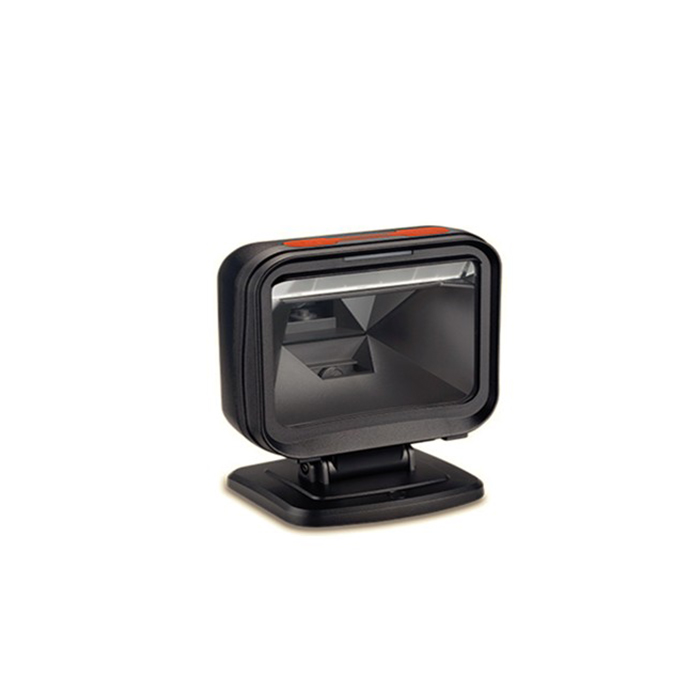

CODESOFT Barcode Scanner
Model: CS-8300 (DISCONTINUED)
SPECIFICATIONS
- Scanning Angle : ±60°, ±40°, 360° (skew, pitch, roll)
- Decode Capability : 1D: All common 1D barcodes including GS1 DataBar 2D: All common 2D barcodes
- Input Voltage : 5 VDC ± 0.25 V
- Current : 2000 mA (working), 80 mA (standby)
- Cable : Straight 2.0m
- Connector Type : RJ-45 phone jack connector
- Case Material : PC+TPU
- Operating Temperature : 0°C to 50°C / 32°F to 120°F (operating)
- Storage Temperature : -40°C to 70°C / -40°F to 140°F (storage)
- Interfaces : RS-232, USB Keyboard, USB virtual COM
- Dimensions : 152 mm × 81mm × 144 mm (without stand) 152 mm × 112 mm × 184 mm (with stand) 563 g (without stand), 832 g (with stand)
- Power : 10.00 W (working), 0.40 W (standby)
- EMC & Safety : EMC: EN 55022, EN 55024; Electrical Safety: en 60950-1;
- Image Size : 1280× 1024 pixels
