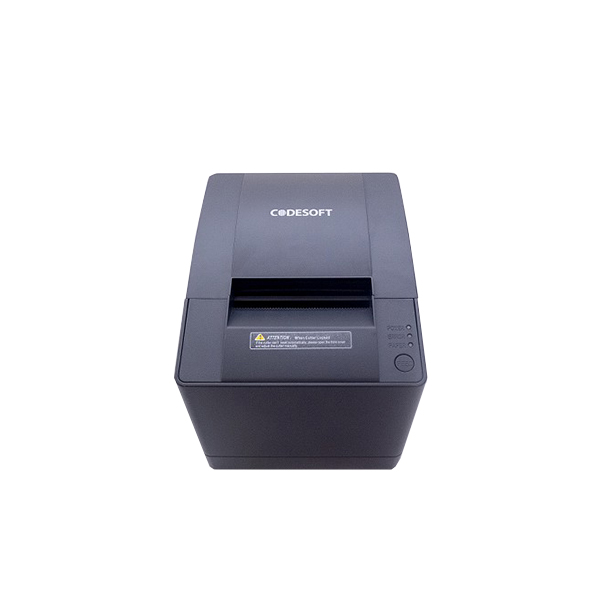

CODE SOFT Thermal Receipt Printer
Model: TP-3260VL
FEATURES
- Printing Method : Thermal Line Printing
- Printing Width : 80mm: 72mm / 567dots & 64mm / 512 dots
- Dot Pitch : 567dots / line 512dots / line
- Printing Speed : 250mm/sec ( 60 lines / sec )
- Number of Columns : 80mm: Front A – 42 columns / 48 columns / Front B – 56 columns / 64 columns / Simplified / Traditional Chinese – 21 columns / 24 columns
- Character Size : ANK Character, Front A : 1.5 x 3.0mm ( 12 x 24 dots ) Font B: 1.1 x 2.1mm ( 9 x 17 dots ) Simplified / Traditional Chinese : 3.0 x 3.0mm ( 24 x 24 dots )
- Character Table : PC437 / Katakana / PC850 / PC860 / PC863 / PC865 WPC1252 / PC866 / PC852c / PC858 / Latvian / Arabic / PT151, 1251
- Line Spacing : 3.75mm; Black Mark;
- Paper : 79.5 +/- 0.5mm @ 83mm
- Interface : USB + serial + Ethernet
- Input Buffer : 8K bytes; NV User Memory: 60K bytes;
- Drawer Kick-Out : DC 24V / 2.5A
- Power Supply : DC 12-24V / 1A, 2 Drawer
- AC Adapter : Input: AC 110V / 220V, 50-60 Hz Output : DC 24V / 2.5A
- Weight : 1.50Kg
- Reliability : 100km
- Driver : Win 7 / 8 / 10 / LINUX / OPOS
- Dimensions (W*D*H) : Support – Center
- Safety : 3C , CE
- Operating Temperature : Temperature: 0-45 Humidity: 10~80%
- Storage Temperature : Temperature: 0-60 Humidity: 10~90%
- Barcode Types : UPC-A/UPC-E/JAN-13/EAN-8/CODABAR/ITF/CODE39/CODE93/CODE128 / QR code
- Auto Cutter : Full or Partial
- Command : ECS / POS , STAR
