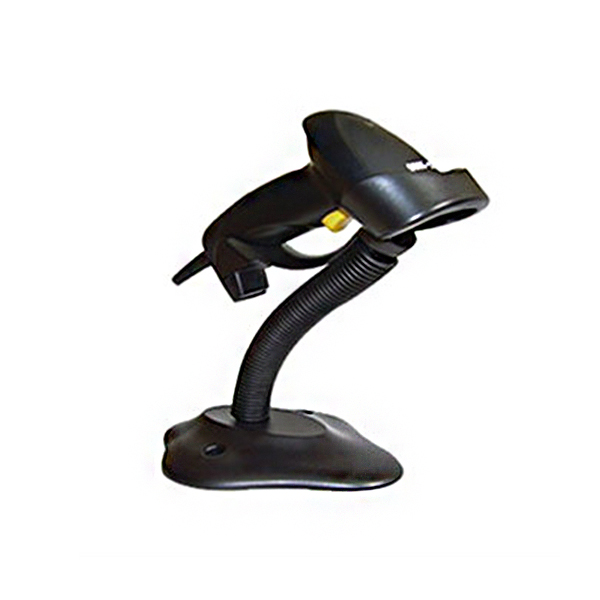

CODE SOFT Barcode Scanner
Model: CS-1000LR Plus
SPECIFICATIONS
• Scan Engine / Scan Method : Single laser scan mode
• Auto Scanning / Scan Speed : 100 scans per second
• Min. Element Width : 0.1mm (4 mil)
• Decode Capability : Auto-discriminates all standard 1D
• Input Voltage : 5VDC +/- 5%
• Current Operating Current : 85mA
• Indicator : Visual and Audio
• Dimensions : 154 X 67 X 95 mm (L X W X H)
• Cable : Field replaceable, Standard 2.0M Coil
• Humidity : 5% to 85% (non-condensing)
• Decoding Depth : 0-380mm (UPC/EAN 100%, PCS 90%)
• Printing Method : Print Contrast: Minimum 25%
• Interface : Keyboard PS2,USB or RS-232 interfaces
• Operating Temperature : 0 to 45 degree Celsius
• Storage Temperature : -20 to 60 degree Celsius
• Drop Specification : Multiple 2.0 meters drops to concrete
• Protection Class : IP52
• Light Source : 650nm Visible Laser Diode
