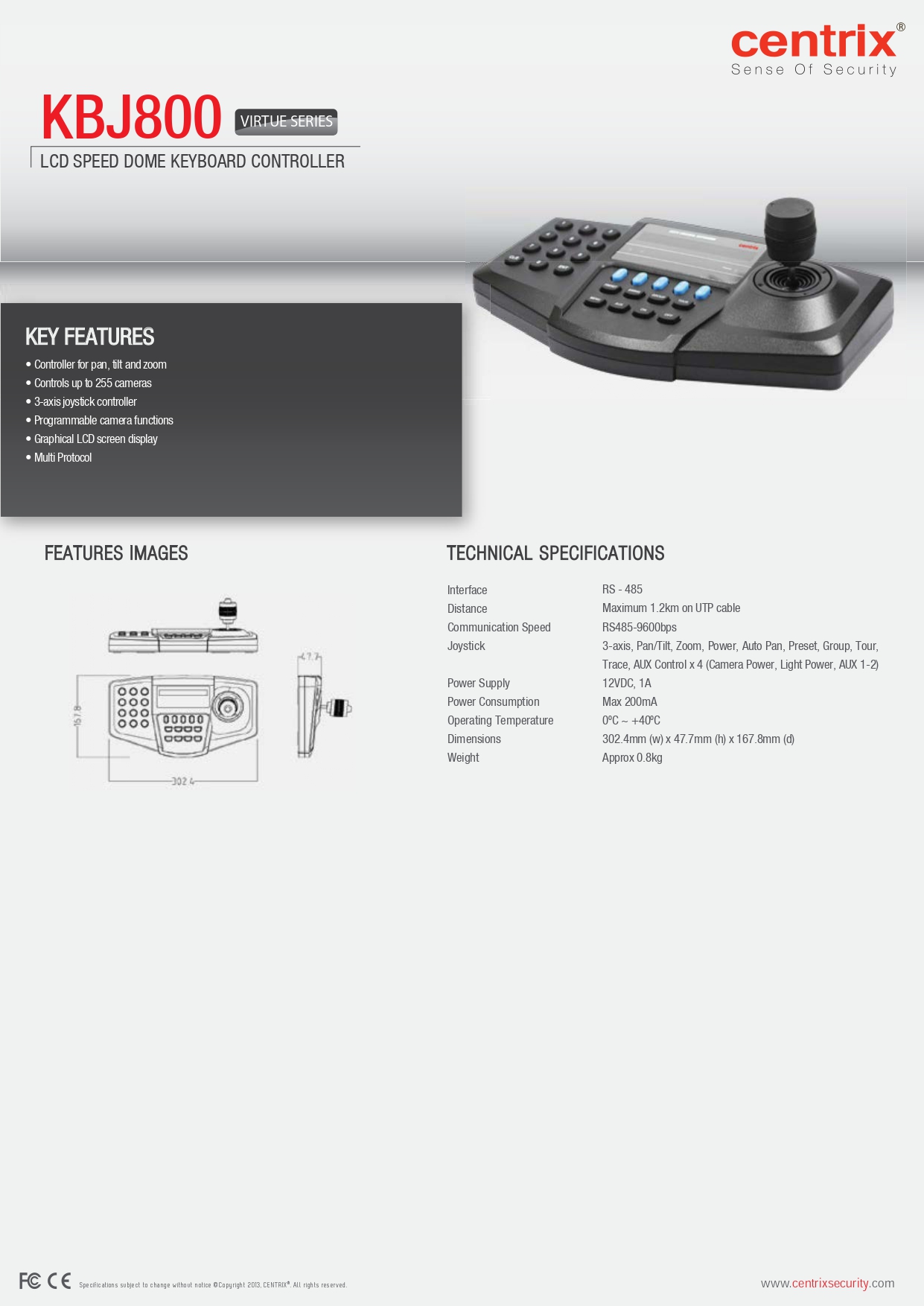

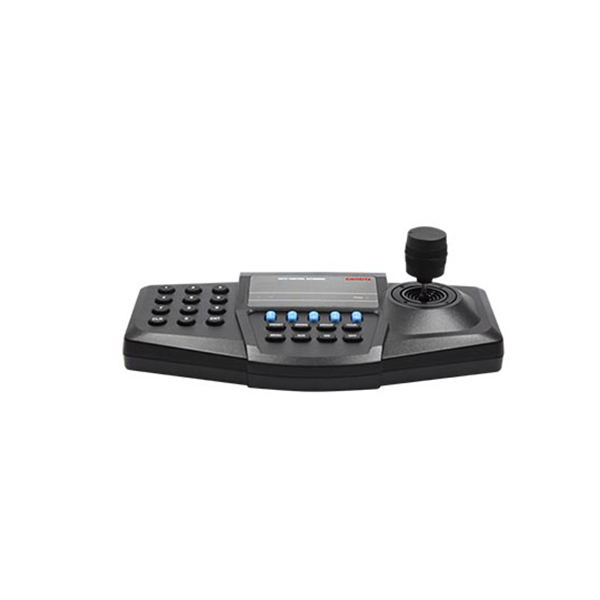

CENTRIX Speed Dome PTZ Keyboard Controller
Model: KBJ800
KEY FEATURES
- Controller for pan, tilt and zoom
- Controls up to 255 cameras
- 3-axis joystick controller
- Programmable camera functions
- Graphical LCD screen display
- Multi Protocol
TECHNICAL SPECIFICATIONS
- Interface : RS – 485
- Distance : Maximum 1.2km on UTP cable
- Communication Speed : RS485-9600bps
- Joystick : 3-axis, Pan/Tilt, Zoom, Power, Auto Pan, Preset, Group, Tour,Trace, AUX Control x 4 (Camera Power, Light Power, AUX 1-2)
- Power Supply : 12VDC, 1A
- Power Consumption : Max 200mA
- Operating Temperature : 0ºC ~ +40ºC
- Dimensions : 302.4mm (w) x 47.7mm (h) x 167.8mm (d)
- Weight : Approx 0.8kg
