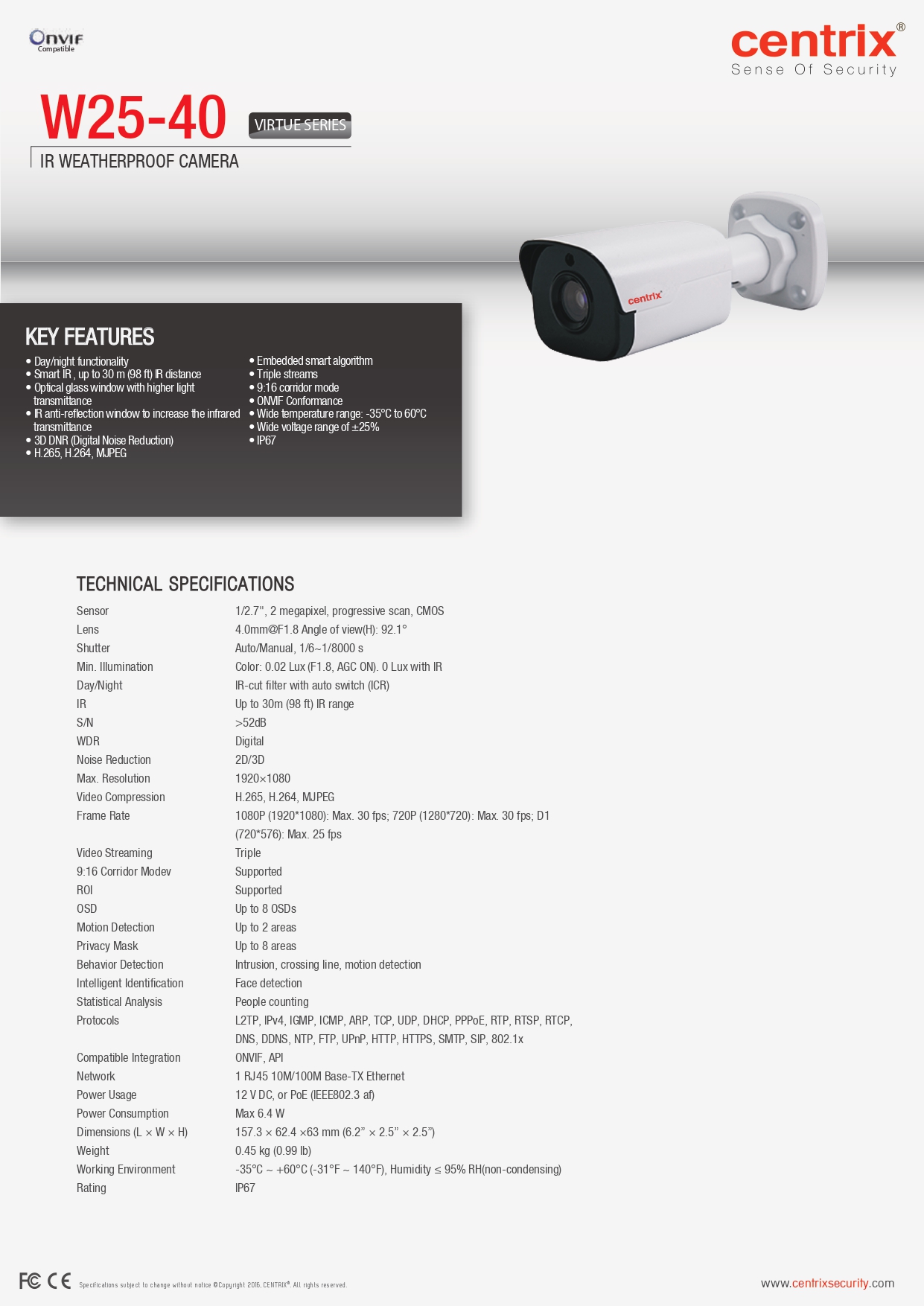

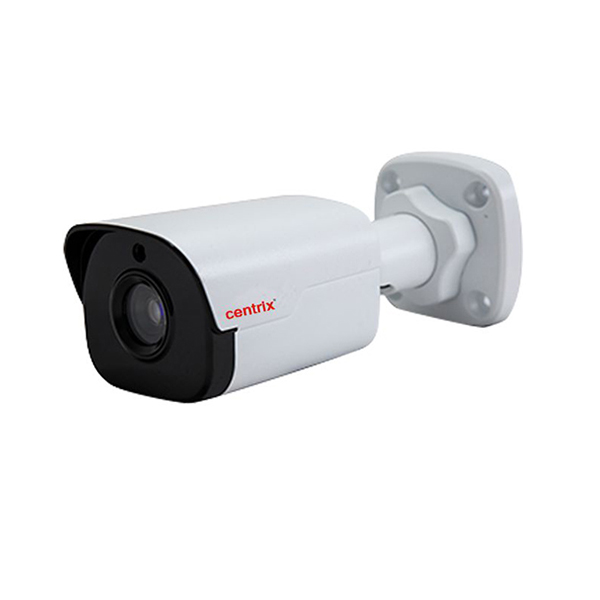

CENTRIX Infra Red Weatherproof Camera
Model: W25-40 (DISCONTINUED)
KEY FEATURES
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- Lowlight surveillance
- 3D DNR (Digital Noise Reduction)Built-in motorized lens for remote zoom
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- ONVIF Conformance
- Support PoE power supply
- Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C to 60°C
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP66
TECHNICAL SPECIFICATIONS
- Sensor : 1/3″, 2.0 megapixel, progressive scan CMOS
- Shutter : Auto/Manual, 1/6~1/8000 s\
- Lens : 2.8~12 mm@F1.6; Angle of View (H): 90° (wide) ~28° (tele)
- Zoom/Focus : Motor drive
- Min. Illumination : Colour: 0.02 Lux (F1.6, AGC ON) 0 Lux with IR
- Day/Night : IR-cut filter with auto switch (ICR)
- IR Range : Up to 30m (98 ft) IR range
- S/N : >52dB
- WDR : Optical WDR (up to 120 dB)
- Max. Resolution : 1920 x 1080
- Video Compression : H.265,H.264,MJPEG
- Capture Collect Mode : 1080P (1920 x 1080) @30 fps; 1080P (1920 x 1080) @25fps
- 9:16 Corridor Mode : Supported
- ROI : Supported
- Video Streaming : Triple
- OSD : Up to 8 OSDs
- Privacy Mask : Supported
- Behavior Detection : Intrusion, crossing line, motion detection
- Exception Detection : Audio detection
- Intelligent Identification : Face detection
- Statistical Analysis : People counting
- Audio Compression : G.711
- Two-way audio : Supported
- Edge Storage : Micro SD, up to 128 GB
- Protocols : L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
- Compatible Integration : ONVIF, API
- Audio Input : impedance 35 k ; amplitude 2 V [p-p]
- Audio Output : impedance 600 ; amplitude 2 V [p-p]
- Alarm I/O : 1-Jan
- Network : 1 RJ45 10M/100M Base-TX Ethernet
- Video Output : 1 BNC, impedance 75 ; amplitude 1 V [p-p]
- Power Output : DC12V Power Output With PoE
- Power Consumption : 12 V DC, or PoE (IEEE802.3 af)
- Dimensions (Ø x H) : 148 x 111.3 mm (Ø5.8” x 4.4”)
- Weight : 0.75 kg (1.7 lb)
- Working Environment : -40°C ~ +60°C (-40°F ~ 140°F), Humidity 95% RH(non condensing)
- Rating : IK10, IP66
