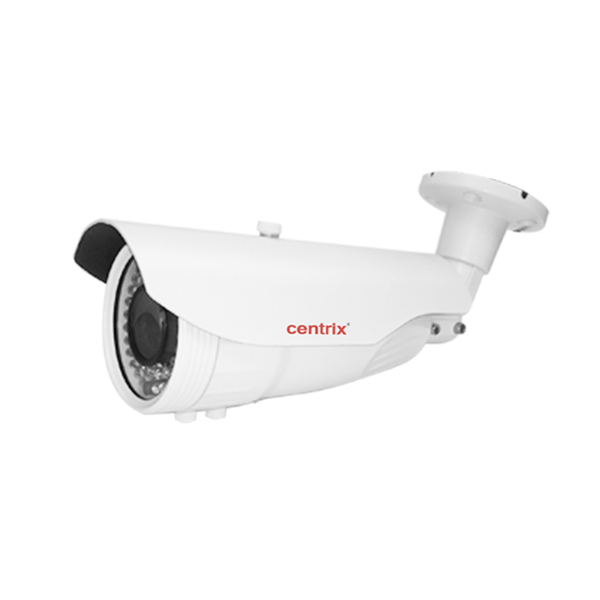

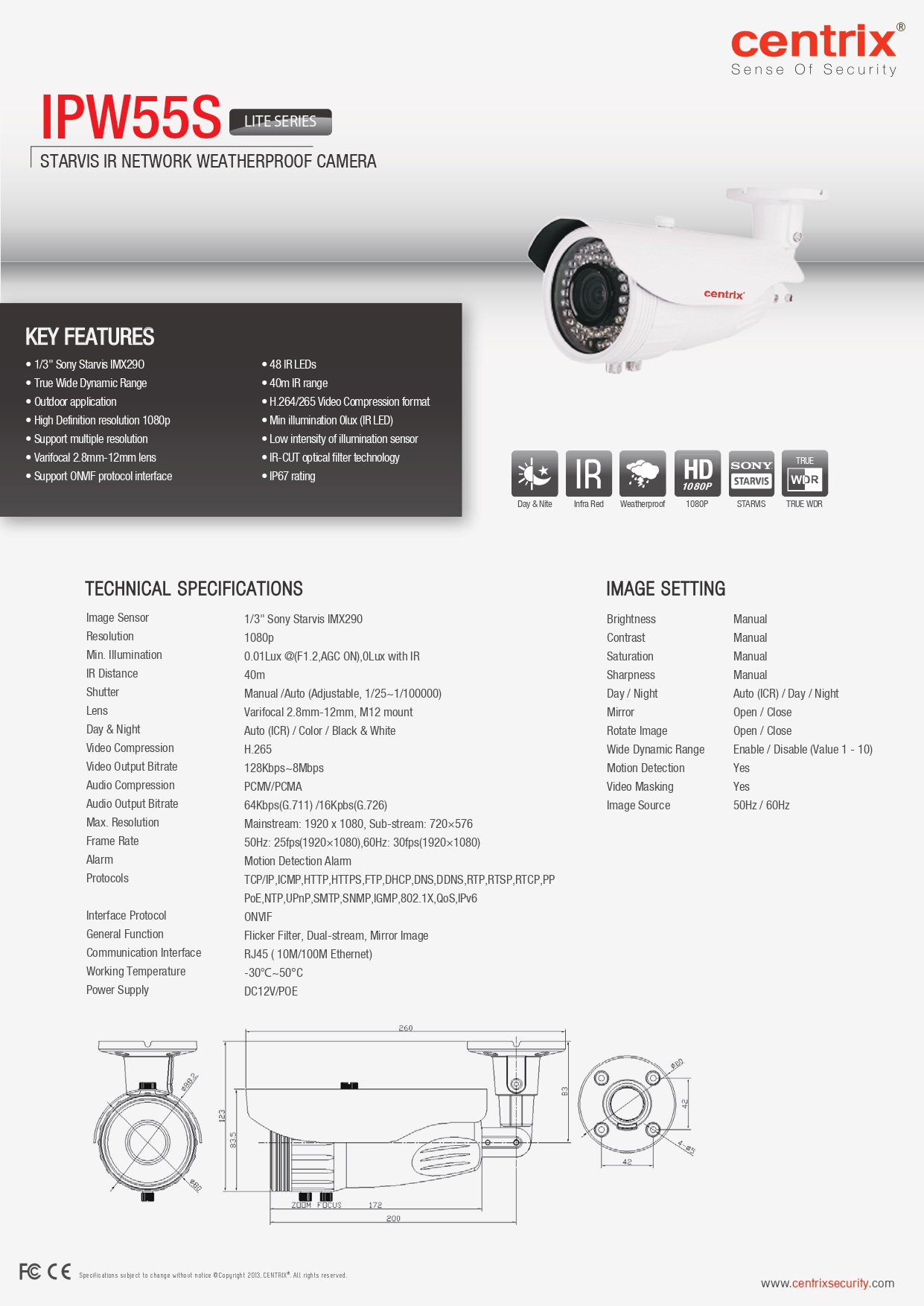

CENTRIX Infra Red Weatherproof Camera
Model: IPW55S
KEY FEATURES
- 1/3" Sony Starvis IMX29O
- True Wide Dynamic Range
- Outdoor application
- High Definition resolution 1080p
- Support multiple resolution
- Varifocal 2.8mm-12mm lens
- Support ONVIF protocol interface
- 48 IR LEDs
- 40m IR range
- H.264/265 Video Compression format
- Min illumination 0lux (IR LED)
- Low intensity of illumination sensor
- IR-CUT optical filter technology
- IP67 rating
TECHNICAL SPECIFICATIONS
- Image Sensor : 1/3" Sony Starvis IMX290
- Resolution : 1080p
- Min Illumination : 0.01Lux @(F1.2,AGC ON),0Lux with IR
- IR Distance : 40m
- Shutter : Manual /Auto (Adjustable, 1/25~1/100000)
- Lens : Varifocal 2.8mm-12mm, M12 mount
- Day & Night : Auto (ICR) / Color / Black & White
- Video Compression : H.265
- Video Output Bitrate : 128Kbps~8Mbps
- Audio Compression : PCMV/PCMA
- Audio Output Bitrate : 64Kbps(G.711) /16Kpbs(G.726)
- Max Resolution : Mainstream: 1920 x 1080, Sub-stream: 720×576
- Frame Rate : 50Hz: 25fps(1920×1080),60Hz: 30fps(1920×1080)
- Alarm : Motion Detection Alarm
- Protocols : TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6
- Interface Protocol : ONVIF
- General Function : Flicker Filter, Dual-stream, Mirror Image
- Communication Interface : RJ45 ( 10M/100M Ethernet)
- Working Temperature : -30°C~50°C
- Power Supply : DC12V POE
