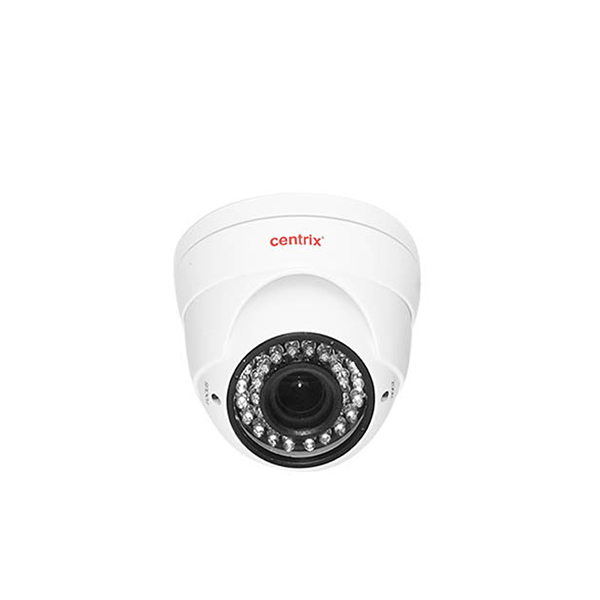

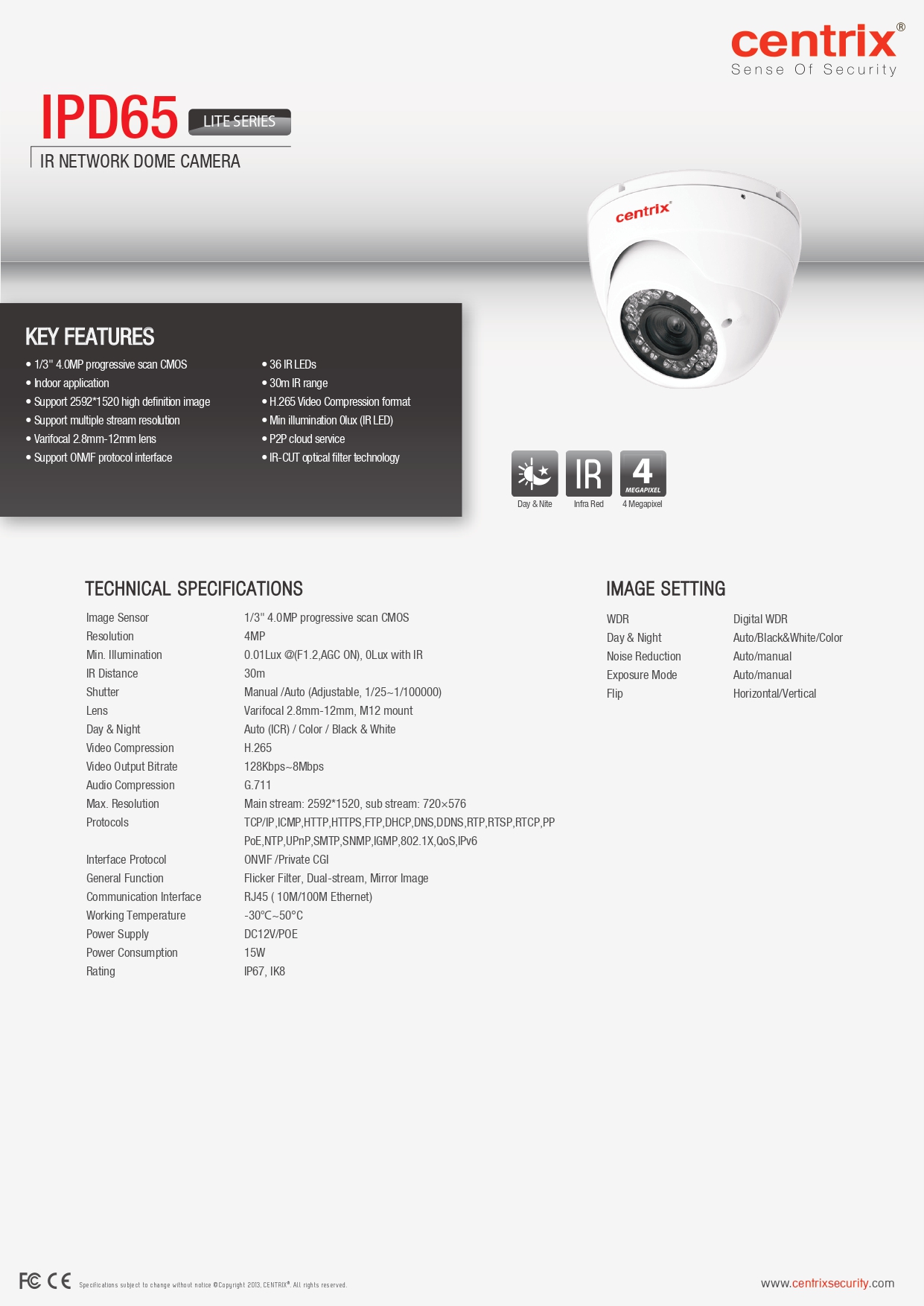

CENTRIX Infra Red Dome Camera
Model: IPD65
KEY FEATURES
- 1/3" 4.0MP progressive scan CMOS
- Indoor application
- Support 2592*1520 high definition image
- Support multiple stream resolution
- Varifocal 2.8mm-12mm lens
- Support ONVIF protocol interface
- 36 IR LEDs
- 30m IR range
- H.265 Video Compression format
- Min illumination 0lux (IR LED)
- P2P cloud service
- IR-CUT optical filter technology
TECHNICAL SPECIFICATIONS
- Image Sensor : 1/3" 4.0MP progressive scan CMOS
- Resolution : 4MP
- Min. Illumination : 0.01Lux @(F1.2,AGC ON), 0Lux with IR
- IR Distance : 30m
- Shutter : 30m
- Lens : Varifocal 2.8mm-12mm, M12 mount
- Day & Night : Auto (ICR) / Color / Black & White
- Video Compression : H.265
- Video Output Bitrate : 128Kbps~8Mbps
- Audio Compression : G.711
- Audio Output BItrate : Main stream: 2592*1520, sub stream: 720×576
- Max. Resolution : Mainstream: 1920 x 1080, Sub-stream: 720×576
- Protocols : TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6
- Interface Protocol : ONVIF /Private CGI
- General Function : Flicker Filter, Dual-stream, Mirror Image
- Communication Interface : RJ45 ( 10M/100M Ethernet)
- Working Temperature : -30°C~50°C
- Power Supply : DC12V/POE
- Power Consumption : 15W
- Rating : IP67, IK8
