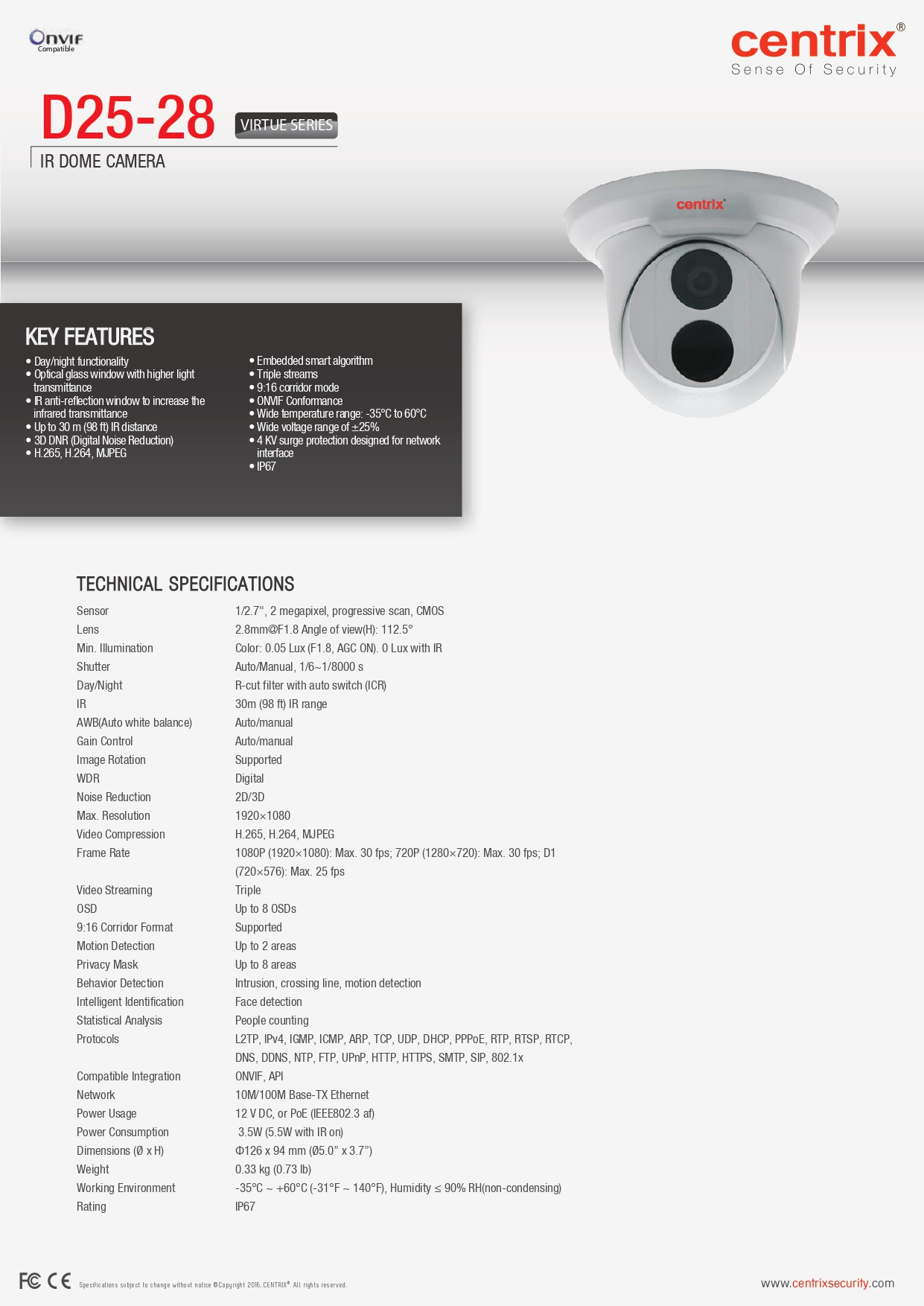

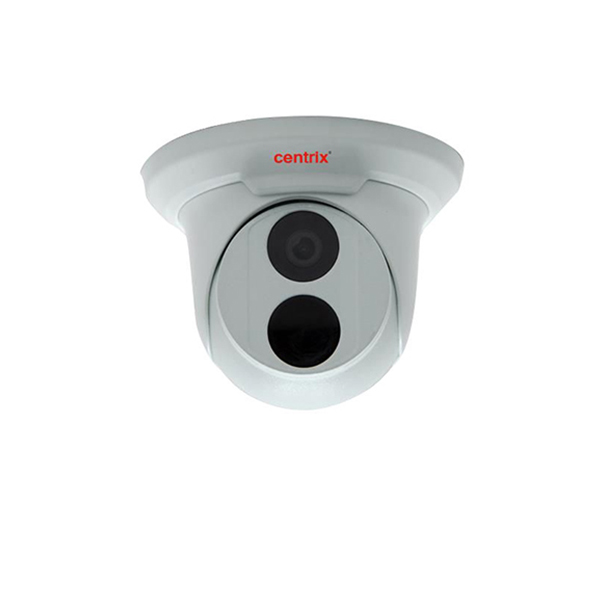

CENTRIX Infra Red Dome Camera (DISCONTINUED)
Model: D25-28
KEY FEATURES
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Up to 30 m (98 ft) IR distance
- 3D DNR (Digital Noise Reduction)
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor mode
- ONVIF Conformance
- Wide temperature range: -35°C to 60°C
- Wide voltage range of ±25%
- 4 KV surge protection designed for network interface
- IP67
TECHNICAL SPECIFICATIONS
- Sensor : 1/2.7″, 2 megapixel, progressive scan, CMOS
- Lens : 2.8mm@F1.8 Angle of view(H): 112.5°
- Min. Illumination : Color: 0.05 Lux (F1.8, AGC ON). 0 Lux with IR
- Shutter : Auto/Manual, 1/6~1/8000 s
- Day/Night : R-cut filter with auto switch (ICR)
- IR : 30m (98 ft) IR range
- AWB(Auto white balance) : Auto/manual
- Gain Control : Auto/manual
- Image Rotation : Supported
- WDR : Digital
- Noise Reduction : 2D/3D
- Max. Resolution : 1920×1080
- Video Compression : H.265, H.264, MJPEG
- Frame Rate : 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps
- Video Streaming : Triple
- OSD : Up to 8 OSDs
- 9:16 Corridor Format : Supported
- Motion Detection : Up to 2 areas
- Privacy Mask : Up to 8 areas
- Behavior Detection : Intrusion, crossing line, motion detection
- Intelligent Identification : Face detection
- Statistical Analysis : People counting
- Protocols : L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
- Compatible Integration : ONVIF, API
- Network : 10M/100M Base-TX Ethernet
- Power Usage : 12 V DC, or PoE (IEEE802.3 af)
- Power Consumption : 3.5W (5.5W with IR on)
- Dimensions (Ø x H) : 126 x 94 mm (Ø5.0” x 3.7”)
- Weight : 0.33 kg (0.73 lb)
- Working Environment : -35°C ~ +60°C (-31°F ~ 140°F), Humidity 90% RH(non-condensing)
- Rating : IP67
