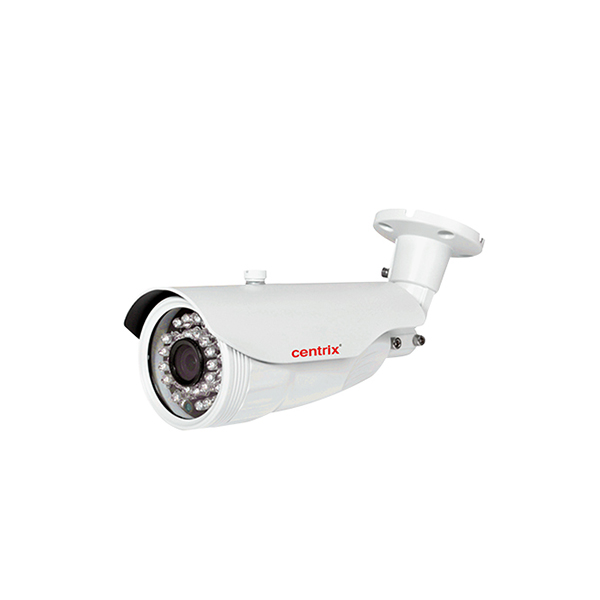

CENTRIX Infra Red AHD Weatherproof Camera
Model: IHW50M
KEY FEATURES
- 1/3" SONY Exmor CMOS IMX225
- Outdoor application
- High Definition resolution 1080 X 960
- Super Low Lux
- 2.8 ~12mm varifocal lens
- Max. transmission distance up to 500 meters
- 48 IR LEDs
- 40m IR range
- 0.01Lux (F1.2), 0 Lux with IR
- IR-CUT optical filter technology
- IP67 Rating
TECHNICAL SPECIFICATIONS
- Image Sensor : 1/3" SONY Exmor CMOS IMX225
- Processor : NVP2431H
- Scanning System : Progressive scan method
- Resolution : 960P
- Effective Pixels : 1.4M (1305H*1049V)
- Image System : PAL/ NTSC
- Electronic Shutter : 4/25s~1/45,000s
- Min. Illumination : 0.01Lux (F1.2), 0 Lux with IR
- Video Output : 1CH AHD /TVI /CVI / CVBS output
- S/N Ratio : More than 50dB (AGC off)
- Gamma Correction : 0.45
- Lens : 2.8 ~12mm varifocal
- IR LED : 48 nos
- IR Distance : 40M
- Working Temperature : -10°C~50°C
- Storage Temperature : -30°C~60°C
- Humidity : 20%~90%
- Power Consumption : 12VDC±10%
