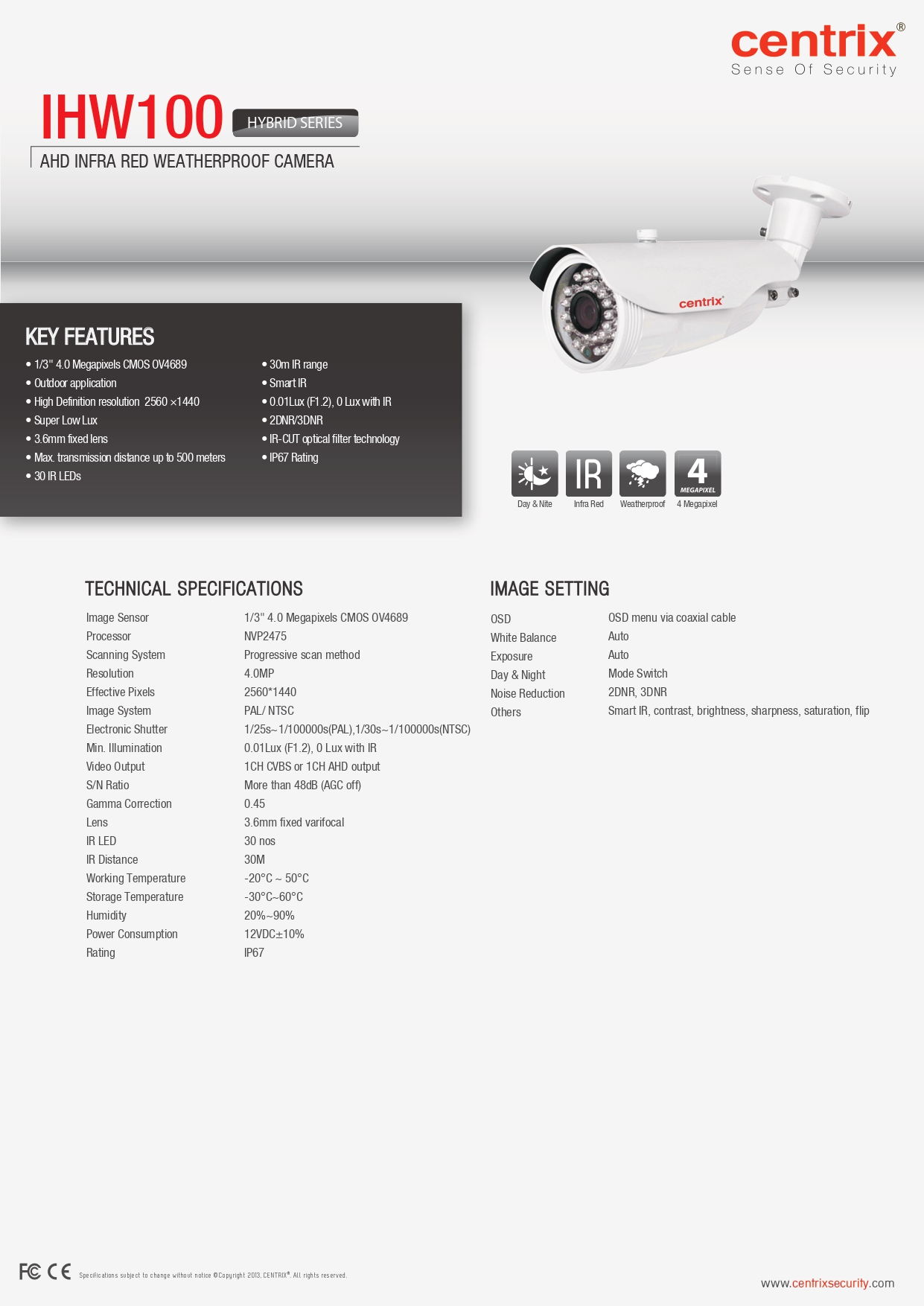

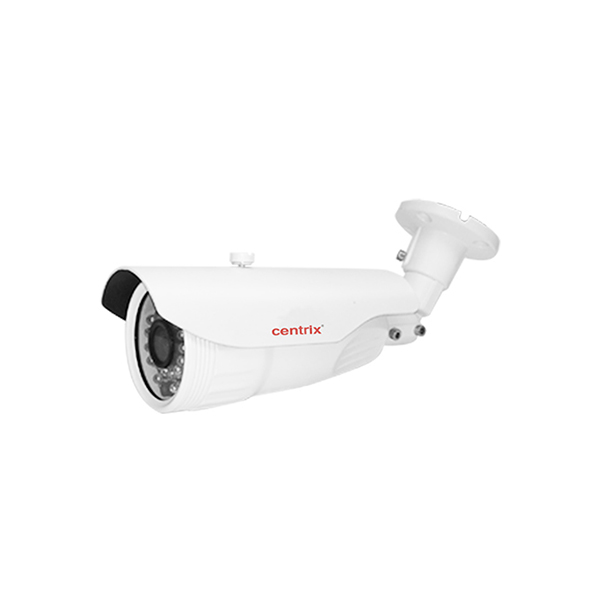

CENTRIX Infra Red AHD Weatherproof Camera
Model: IHW100
KEY FEATURES
- 1/3" 4.0 Megapixels CMOS OV4689
- Outdoor application
- High Definition resolution 2560 ×1440
- High Definition resolution 2560 ×1440
- 3.6mm fixed lens
- Max. transmission distance up to 500 meters
- 30 IR LEDs
- 30m IR range
- Smart IR
- 0.01Lux (F1.2), 0 Lux with IR
- 2DNR/3DNR
- IR-CUT optical filter technology
- IP67 Rating
TECHNICAL SPECIFICATIONS
- Image Sensor : 1/3" 4.0 Megapixels CMOS OV4689
- Processor : NVP2475
- Scanning System : Progressive scan method
- Resolution : 4.0MP
- Effective Pixels : 2560*1440
- Image System : PAL/ NTSC
- Electronic Shutter : 1/25s~1/100000s(PAL),1/30s~1/100000s(NTSC)
- Min. Illumination : 0.01Lux (F1.2), 0 Lux with IR
- Video Output : 1CH CVBS or 1CH AHD output
- S/N Ratio : More than 48dB (AGC off)
- Gamma Correction : 0.45
- Lens : 3.6mm fixed varifocal
- IR LED : 30 nos
- IR Distance : 30M
- Working Temperature : -20°C~50°C
- Storage Temperature : -30°C~60°C
- Humidity : 20%~90%
- Power Consumption : 12VDC±10%
- Rating : IP67
