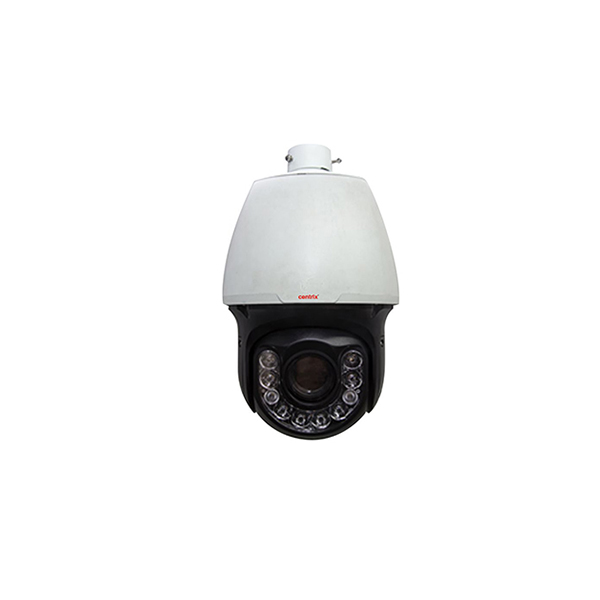

CENTRIX High Speed Dome Camera
Model: SE25SW-22X
KEY FEATURES
- 30X Optical Zoom
- Accurate and fast focusing
- Starlight illumination
- 22X Optical Zoom
- Accurate and fast focusing
- Full spectrum light with both white and infrared LED design
- Smart IR, up to 150 m (492 ft) IR distance
- Up to 120dB WDR(Wide Dynamic Range)
- While Light , up to 30m(98ft)
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Embedded smart algorithm
- Triple streams
- ONVIF Conformance
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface
TECHNICAL SPECIFICATIONS
- SENSOR : 1/1.9″, 2 megapixel, progressive scan, CMOS
- LENS : 6.5 ~ 143 mm (22x optical zoom)
- ANGLE OF VIEW(H) : 70° (wide) ~ 3.76° (tele)
- IRIS : Auto/Manual; F1.5 ~ F3.4
- SHUTTER : Auto/Manual; shutter time: 1/6 s ~ 1/8000 s
- MINIMUM ILLUMINATION : Colour: 0.001 lux (F1.5, AGC ON), 0 Lux with IR on S/N RATIO : >52dB
- WDR : 120 dB
- DAY/NIGHT : IR-cut filter with auto switch (ICR)
- MAX RESOLUTION : 1920 × 1080
- VIDEO COMPRESSION : H.265, H.264, MJPEG
- FRAME RATE : 1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps
- VIDEO STREAMING : Triple
- OSD : Up to 8 OSDs
- PRIVACY MASK : Up to 4 areas
- DIGITAL ZOOM : Supported
- HLC : Supported
- BEHAVIOR DETECTION : Intrusion, crossing line, motion detection
- EXCEPTION DETECTION : Audio detection
- INTELLIGENT IDENTIFICATION : Face detection
- STATISTICAL ANALYSIS : People counting
- AUDIO COMPRESSION : G.711
- TWO-WAY AUDIO : Supported
- EDGE STORAGE : Micro SD, up to 128 GB
- PROTOCOLS : L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,HTTPS, SMTP, SIP, 802.1x
- COMPATIBLE INTEGRATION : ONVIF, API
- PAN RANGE : 360° (endless)
- PAN SPEED : 0.1°/s ~ 240°/s, Preset speed: 300°/s
- TILT RANGE : –15° ~ +90° (auto reverse)
- TILT SPEED : 0.1° ~ 160°/s, Preset speed: 240°/s
- NUMBER OF PRESET : 256
- PATROL : Preset patrol, route patrol, recorded patrol
- HOME POSITION : Supported
- DRAG-TO-ZOOM : Supported
- AUDIO INPUT : impedance 35 k ; amplitude 2 V [p-p]
- AUDIO OUTPUT : impedance 600 ; amplitude 2 V [p-p]
- ALARM I/O : 2/ 1
- SERIAL PORT : 1 RS485NETWORK : 1 RJ45 10M/100M Base-TX Ethernet
- VIDEO OUTPUT : 1 BNC, impedance 75 ; amplitude 1 V [p-p]
- POWER : 24 V AC, 24 V DC, Power consumption: 9 ~ 47W
- DIMENSION : Ø227 x 359.4 mm (Ø8.9” x 14.2”)
- WEIGHT : 5.4 kg (11.9 lb)
- WORKING ENVIRONMENT : –40°C ~ +65°C (-40°F ~ 149°F), Humidity 95% RH(non-condensing)
- RATING : IP67
