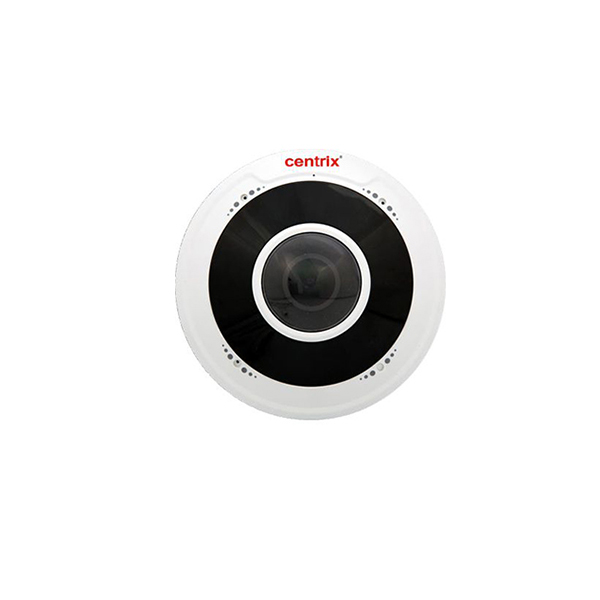

CENTRIX Fisheye Panorama Camera
Model: Q45 (DISCONTINUED)
KEY FEATURES
- Ultra wide angle lens, 180° panoramic image
- Smart IR , up to 10m (33 ft) IR distance
- Built-in omnidirectional microphone
- 3D DNR (Digital Noise Reduction)
- H.265, H.264, MJPEG
- Single stream (1 panoramic view)
- Support PoE power supply
- ONVIF Conformance
- Wide temperature range: -40°C to 60°C
- Wide voltage range of ±25%
- IP67 & IK10
TECHNICAL SPECIFICATIONS
- SENSOR : 1/3″, 4 megapixel, progressive scan CMOS
- APERTURE : F1.6
- SHUTTER : Auto/Manual, 1/6~1/8000 s
- MIN ILLUMINATION : Colour: 0.02 Lux (F1.6, AGC ON) 0 Lux with IR on
- S/N RATIO : >55dB
- DAY/NIGHT : IR-cut filter for day & night function
- WDR : 120 dB
- MAX RESOLUTION : 2592×1520
- VIDEO COMPRESSION : H.265, H.264, MJPEG
- FRAME RATE : 4MP (2560×1440): Max. 25 fps
- ROI : Supported
- MAX STREAMS : Single stream (1 panoramic view)
- OSD : Up to 8 OSD
- PRIVACY MASK : Supported
- EDGE STORAGE : Micro SD, up to 128GB
- PROTOCOLS : L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
- COMPATIBLE INTEGRATION : ONVIF, API
- AUDIO INPUT : Input: impedance 35 k ; amplitude 2 V *p-p]
- AUDIO OUTPUT : Output: impedance 600 ; amplitude 2 V *p-p]
- MIC : 3 built-in omnidirectional microphone
- ALARM I/O : 1 / 1
- VIDEO OUTPUT : 1 BNC, impedance 75 ; amplitude 1 V *p-p]
- NETWORK : 10M/100M Base-TX Auto-adaptive Ethernet
- RESET : 1 Reset Button
- POWER : DC12V±25%, PoE (IEEE 802.3af)
- POWER CONSUMPTION : Power consumption: Max. 11 W
- DIMENSION : 125x 43.7 mm ( 4.9” x 1.7”)
- WEIGHT : 0.39kg (0.86lb)
- WORKING ENVIRONMENT : -40°C ~60°C (-40°F ~ 140°F), Humidity 95% RH
- RATING : IP67, IK10
