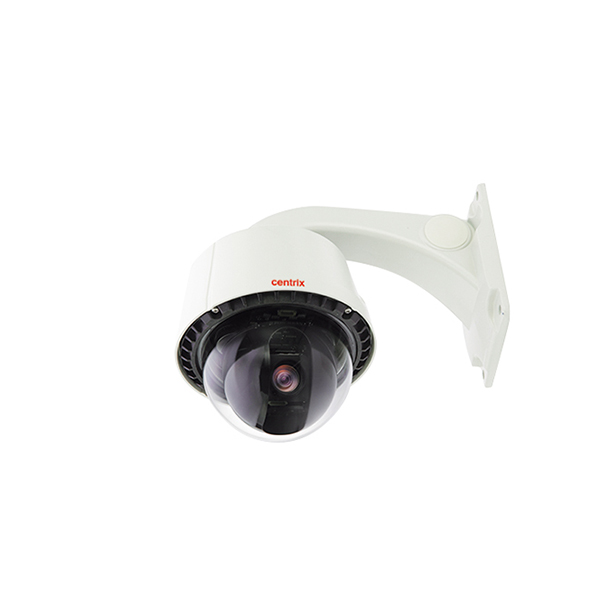

CENTRIX AHD Mini Speed Dome Camera (Outdoor)
Model: SHD10X
KEY FEATURES
- 1/3” Panasonic CMOS
- 1080P AHD Speed Dome Camera
- Optical 10x Zoom (5.51~51mm)
- Min. 0.001Lux with DSS(x4)
- Digital Zoom (32x)
- 3DNR
- Privacy Mask
- Day & Night
- ICR
- Defog
- DIS (Digital Image Stabilizer)
- Weather Proof (IP66)
- Dehumidification
- Preset (250), Group (12), Tour, Trace
TECHNICAL SPECIFICATIONS
- Image Sensor : 1/3" Panasonic CMOS Sensor
- Maximum Image Resolution : 1956(H) x 1266(V), 1080P
- Minimum Illumination : Min 0.001lux
- IR LED : –
- Lens : 5.1 ~ 51mm(10x)Optical(10x), Digital Zoom(32x), Total Zoom (320x)
- Pan Travel : 360° endless
- Tilt Travel : 92°
- Manual Speed : 0.1° ~ 240°/sec (64 Levels), Preset: 360°/sec
- Presets : 250
- Prest Accuracy : ±0.1°
- Audio : –
- Alarm : Input : 4 Sets ; Output : 1 Set
- Operating Temperature : -40°C ~ 50°C (-40°F ~ 122°F)
- Humidity : 30 % ~ 90 % RH
- Rating : IP66
- Power Input : AC24V, 50/60Hz
- Power Consumption : Max 16W
- DImension (ø x h) : 168mm x 175.6mm
- Weight : 3.3kg (Camera Only)
