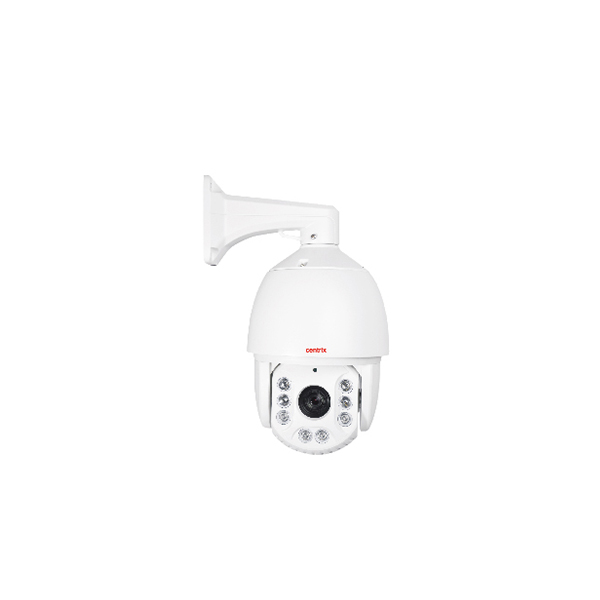

CENTRIX AHD High Speed Dome Camera
Model: IHX20-18X
KEY FEATURES
- 1/3” Sony Exmor CMOS IMX323
- 1080P AHD Speed Dome Camera
- Optical 18X Zoom
- Min. 0.001Lux with DSS(x4)
- Digital Zoom (32x)
- WDR
- Transmission distance up to 500m
- 8 Pcs IR Led
- IR Distance 100m
- Day & Night
- ICR
- Defog
- DIS (Digital Image Stabilizer)
- Weather Proof (IP67)
TECHNICAL SPECIFICATIONS
- Image Sensor : 1/3" 4.0 Megapixels CMOS OV4689
- Maximum Image Resolution : 1920*1080 & 1280×720 25&30hz
- Minimum Illumination : 0.01Lux @(F1.2,AGC ON) , 0Lux with IR ON
- IR LED : 8
- Lens : 18X Zoom, 4.7 to 84.6mm
- S/N Ratio :   50dB(AGC OFF)
- Electronic Shutter : Auto/ 1/50-1/10,000s
- Horizontal Rotation Speed : 360° Rotation
- Vertical Rotation Speed : 0-90°
- Rotation Speed : Horizontal Speed 0.05-60°/s,Vertical 0.05-40°/S
- Overturn : When camera be leaning to 90°, it can be 180° rotation
- Preset : 255 units
- Cruise Scanning : 4 Units
- Pattern Scanning : 8 Units
- LR Scanning : 7 Units
- Protocol : PELCO-P/coaxial control
- IR Distance : Max. 100m
- Control Interface : RS485 Interface
- Power Supply : 12V DC/3A
- Power Consumption :   30W
- Thunder Prevention Rate : Instantaneous voltage +/-6KV
- Rating : IP67
- Working Temperature : Indoor (0~+40ºC), Outdoor (-40~+~60ºC)
- Package : 310 * 310 * 480mm
- Humidity :   95% without condensation
- Weight : 7KGS
