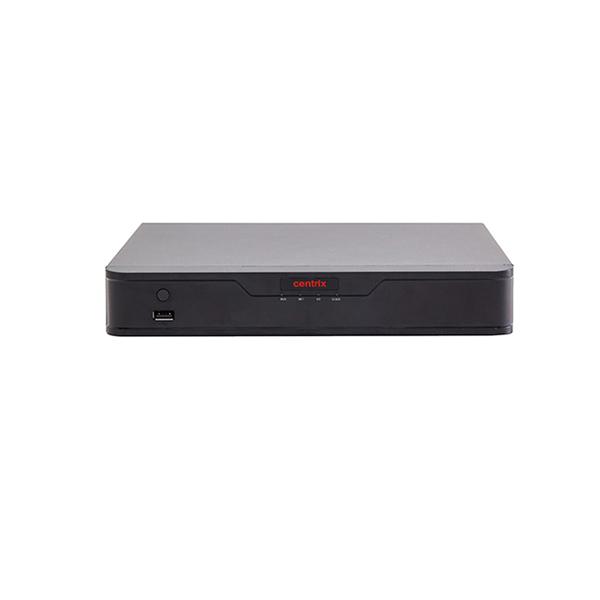

CENTRIX 8 Channel With PoE Network Video Recorder
Model: NVS8-1P
KEY FEATURES
- 24ch 5M/ 32ch 4M/ 16ch 1080P video input
- VGA, HDMI simultaneous video output
- 8-channel input
- Plug & Play with 4 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
- Up to 8 Megapixels resolution recording
- Support H.265/H.264 video formats
- Accurate retrieval, instant playback
- 1 SATA HDD up to 6 TB
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for mobile client access
TECHNICAL SPECIFICATIONS
- IP VIDEO INPUT : 8-ch
- TWO-WAY AUSIO INPUT : 1-ch, RCA
- INCOMING BANDWIDTH : 60Mbps
- OUTBOING BANDWIDTH : 64Mbps
- REMOTE CONNECTION : 128
- HDMI/VGA OUTPUT HDMI : 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz,1024×768 /60Hz VGA:1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
- AUDIO OUTPUT : 1-ch, RCA
- RECORDING RESOLUTION : 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- SYNCHRONOUS PLAYBACK : 8-ch
- COMPRESSION : H.265/H.264
- LIVE VIEW/PLAYBACK : 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIFCAPABILITY : 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25, 16 x D1
- SATA : 1 SATA interface
- CAPACITY : up to 6TB for each disk
- NETWORK INTERFACE : 1 RJ-45 10M/100M self-adaptive Ethernet Interface
- NETWORK FUNCTION : HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP
- Filter, PPPOE, DDNS, FTP, IP Server, P2P
- USB INTERFACE : Rear panel:2 x USB2.0,Front panel:1XUSB2.0
- ALARM IN : 4-ch
- ALARM OUT : 1-ch
- INTERFACE : 8 independent 100 Mbps PoE network interfaces
- SUPPORTED STANDARD : IEEE 802.3at, IEEE 802.3af
- POWER SUPPLY : 52V DC
- CONSUMPTION W/O HDD : 5 W
- POE : Max 30W for single port; Max 54W in total ( 13.5W for each )
- WORKING TEMPERATURE : -10°C ~ + 55°C ( +14°F ~ +131°F )
- WORKING HUMIDITY : 10% ~ 90%
- DIMENSION : 44 × 260 × 240mm ( 1.7″ × 10.2″ × 9.4″ )
- WEIGHT W/O HDD : 1.12 Kg ( 2.47 lb )
