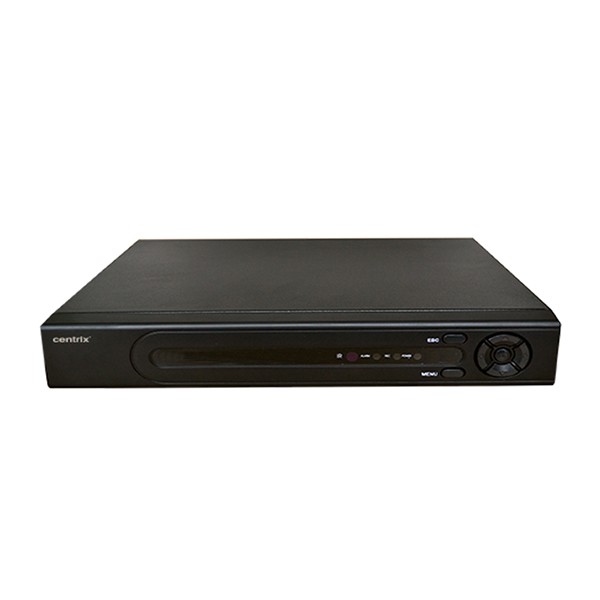

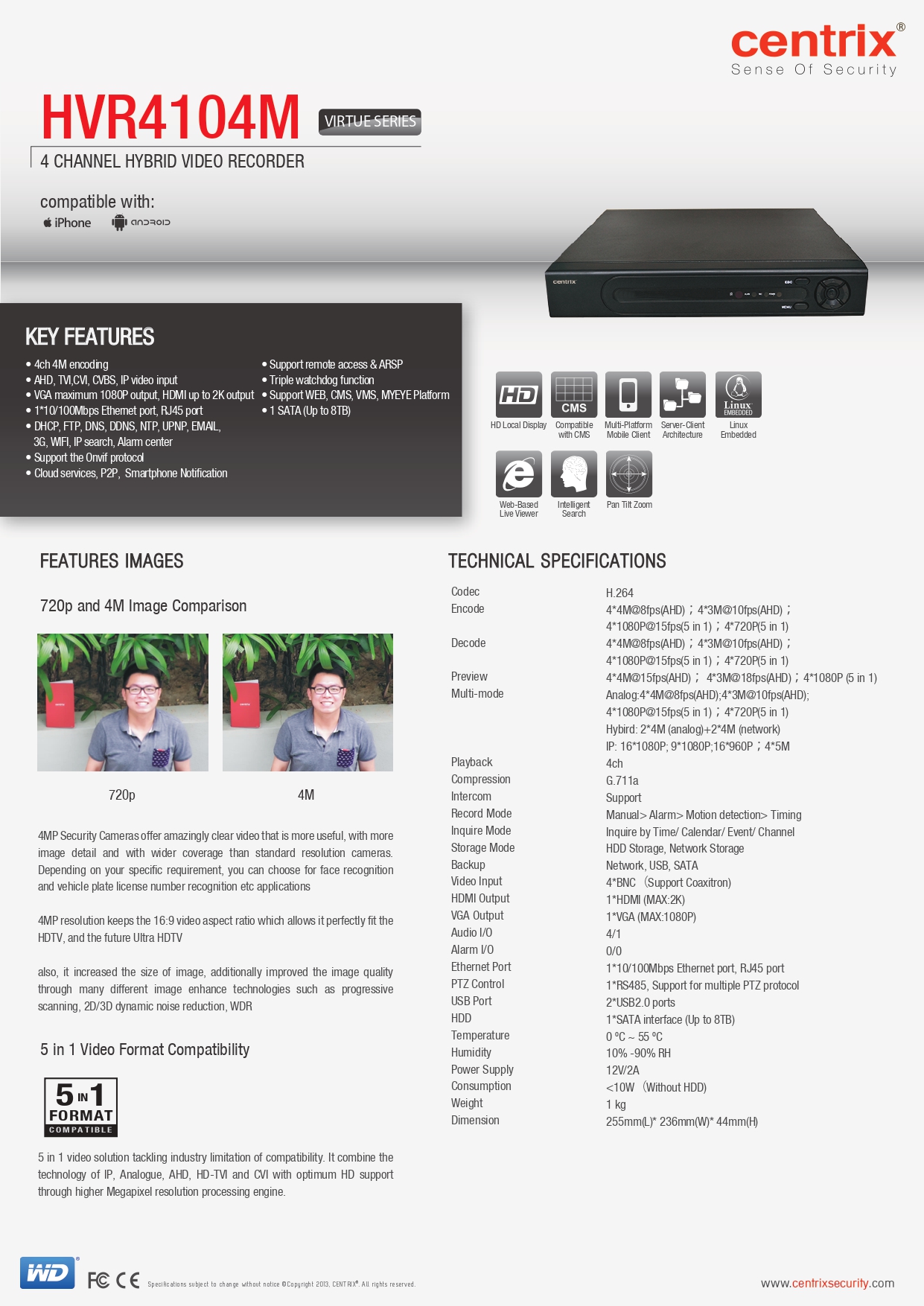

CENTRIX 4 Channel Multi Platform AHD DVR
Model: HVR4104M
KEY FEATURES
- 4ch 4M encoding
- AHD, TVI,CVI, CVBS, IP video input
- VGA maximum 1080P output, HDMI up to 2K output
- 1*10/100Mbps Ethernet port, RJ45 port
- DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL,3G, WIFI, IP search, Alarm center
- Support the Onvif protocol
- Cloud services, P2P, Smartphone Notification
- Support remote access & ARSP
- Triple watchdog function
- Support WEB, CMS, VMS, MYEYE Platform
- 1 SATA (Up to 8TB)
TECHNICAL SPECIFICATIONS
- Codec : H.264
- Encode : 4*4M@8fps(AHD), 4*3M@10fps(AHD). 4*1080P@15fps(5 in 1), 4*720P(5 in 1)
- Decode : 4*4M@8fps(AHD), 4*3M@10fps(AHD),4*1080P@15fps(5 in 1), 4*720P(5 in 1)
- Preview : 4*4M@15fps(AHD), 4*3M@18fps(AHD), 4*1080P (5 in 1)
- Multi-mode : Analog:4*4M@8fps(AHD);4*3M@10fps(AHD);4*1080P@15fps(5 in 1), 4*720P(5 in 1)Hybird: 2*4M (analog)+2*4M (network)IP: 16*1080P; 9*1080P;16*960 4*5M
- Playback : 4ch
- Compression : G.711a
- Intercom : Support
- Record Mode : Manual> Alarm> Motion detection> Timing
- Inquire Mode : Inquire by Time/ Calendar/ Event/ Channel
- Storage Mode : HDD Storage, Network Storage
- Backup : Network, USB, SATA
- Video Input : 4*Support Coaxitron)
- HDMI Output : 1*HDMI (MAX:2K)
- VGA Output : 1*VGA (MAX:1080P)
- Audio I/O : 4/1
- Alarm I/O : 0/0
- Ethernet Port : 1*10/100Mbps Ethernet port, RJ45 port
- PTZ Control : 1*RS485, Support for multiple PTZ protocol
- USB Port : 2*USB2.0 ports
- HDD : 1*SATA interface (Up to 8TB)
- Temperature : 0 ºC ~ 55 ºC
- Humidity : 10% -90% RH
- Power Supply : 12V/2A
- Consumption : <10W (Without HDD)
- Weight : 1 kg
- Dimension : 255mm(L)* 236mm(W)* 44mm(H)
