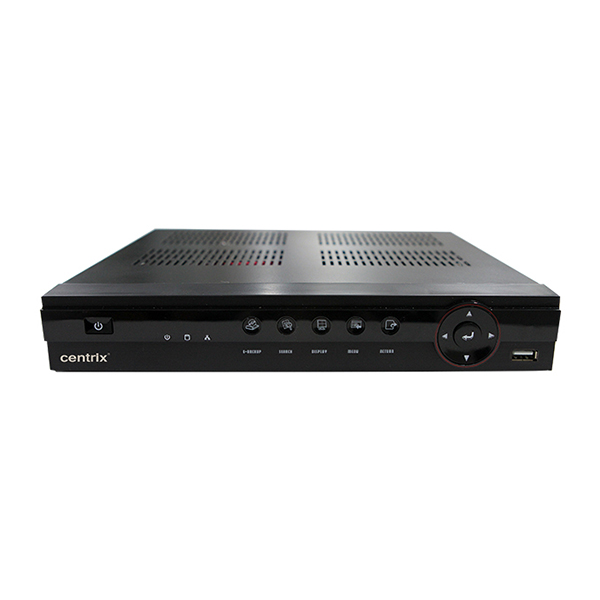

CENTRIX 4 Channel AHD DVR RV3004HD

CENTRIX 4 Channel AHD DVR

Model: RV3004HD



KEY FEATURES

  • Over 400m Transmission with 5C-2V cable
  • Easy Configuration Startup Wizard
  • Remote Monitoring by VMS and Smartphone
  • 2 Way Communication with Smartphone using
    Talk-Back Function
  • Firmware Upgrade by USB & NxMS , VMS, FTP over Network
  • Full 1080P recording
  • 1 SATA 3.5” HDD
  • HDD SMART Info
  • Quick Setup to designate Recording Period
  • System Recovery After Power Failure
  • Support P2P Technology

TECHNICAL SPECIFICATIONS

  • Audio / Video Compression  :  ADPCM / H.264
  • Storage  :  1 SATA HDD
  • Operating System  :  Embedded Linux
  • Video Input  :   4 Ch AHD
  • Live Display  :  120 / 100 fps
  • Live Display Screen Mode  :  VGA & HDMI & Spot (or VGA & HDMI & Composite
  • Video Out Monitor  :  3 x Main Monitors (Composite & VGA & HDMI) & 1 x Spot
    Monitor (Composite)
  • Video Out Resolution  :  HDMI: 800×600, 1024×768, 1280×1024, 1920×1080
    (Selectable)
  • Recording Speed  :  352×240/288(CIF) @ 120/100 fps; 960×480/576(960H) @
    120/100 fps; 1280×720 (HD) @ 120/100 fps; 1920×1080 (HD)
    @ 60/100 fps
  • Recording Resolution  :  1080p Input : 1920×1080, 1280×720, 960×480/576,
    720×480/576, 720×240/288, 352×240/288
    720p Input : 1280×720, 960×480/576, 720×480/576,
    720×240/288, 352×240/288
    Analog SD Input : 960×480/576, 720×480/576, 720×240/288,
    352×240/288
  • Recording Modes  :  Continuous, Scheduled, Sensor -Activated & Motion Detection
    Recording Pre & Post Alarm Recording, Emergency Recording,
    Quick Backup
  • Playback Speed  :  Continuous, Scheduled, Sensor -Activated & Motion Detection
    Recording Pre & Post Alarm Recording, Emergency Recording,
    Quick Backup
  • Playback Channel  :  1, 4, 9(8) & 16 Ch at 1080P (1920 x1080)
  • Playback Function  :  Intelli -Search by Time Bar, Calendar (Date & Time) and Event
    Search
  • Audio Input/Output  :  1 Ch / 1 Ch
  • Alarm Input/Output  :  4 Ch / 1 Ch
  • PTZ Control  :  Virtual Joy-Stick Control on screen by Mouse
    Pan/Tilt/Zoom/Focus/Iris by Keyboard
  • LAN  :  Gigabit Ethernet (RJ45) Fixed IP, DHCP & DDNS
  • Remote Management  :  Software : Remote, NxMS, Trium-I VMS MobileView(iDVRView)
    Web : Live Monitoring, Playback & System Configuration
  • Backup Device  :  Local Backup by USB & ODD, Network Backup & Schedule
    Backup by NxMS
  • Power  :  12V x 3A D/C
  • Operating Temperature  :  5~40ºC
  • Operating Humidity  :  20~90% RH
  • Dimension ( I x W x H )  :  264 x 245 x 44 (mm)
