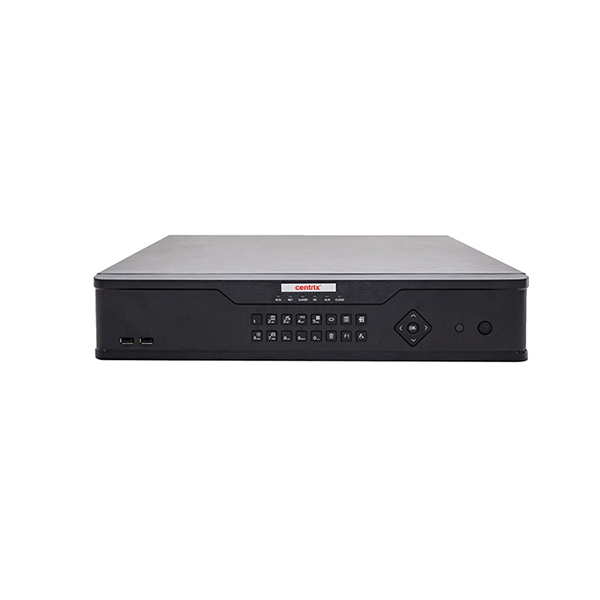

CENTRIX 64 Channel Network Video Recorder
Model: NVS64-8
KEY FEATURES
- 64-channel input
- Third-party IP cameras supported with ONVIF conformance
- Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840×2160) resolution
- Up to 12 Megapixels resolution recording
- Support H.265/H.264 video formats
- Accurate retrieval, instant playback
- Support HDD hot swap with RAID1, 5 storage scheme configurable
- 8 SATA HDDs, Up to 8TB for each HDD
- Support various VCA detection alarm and VCA search
- Support N+1 Hot space
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for mobile client access

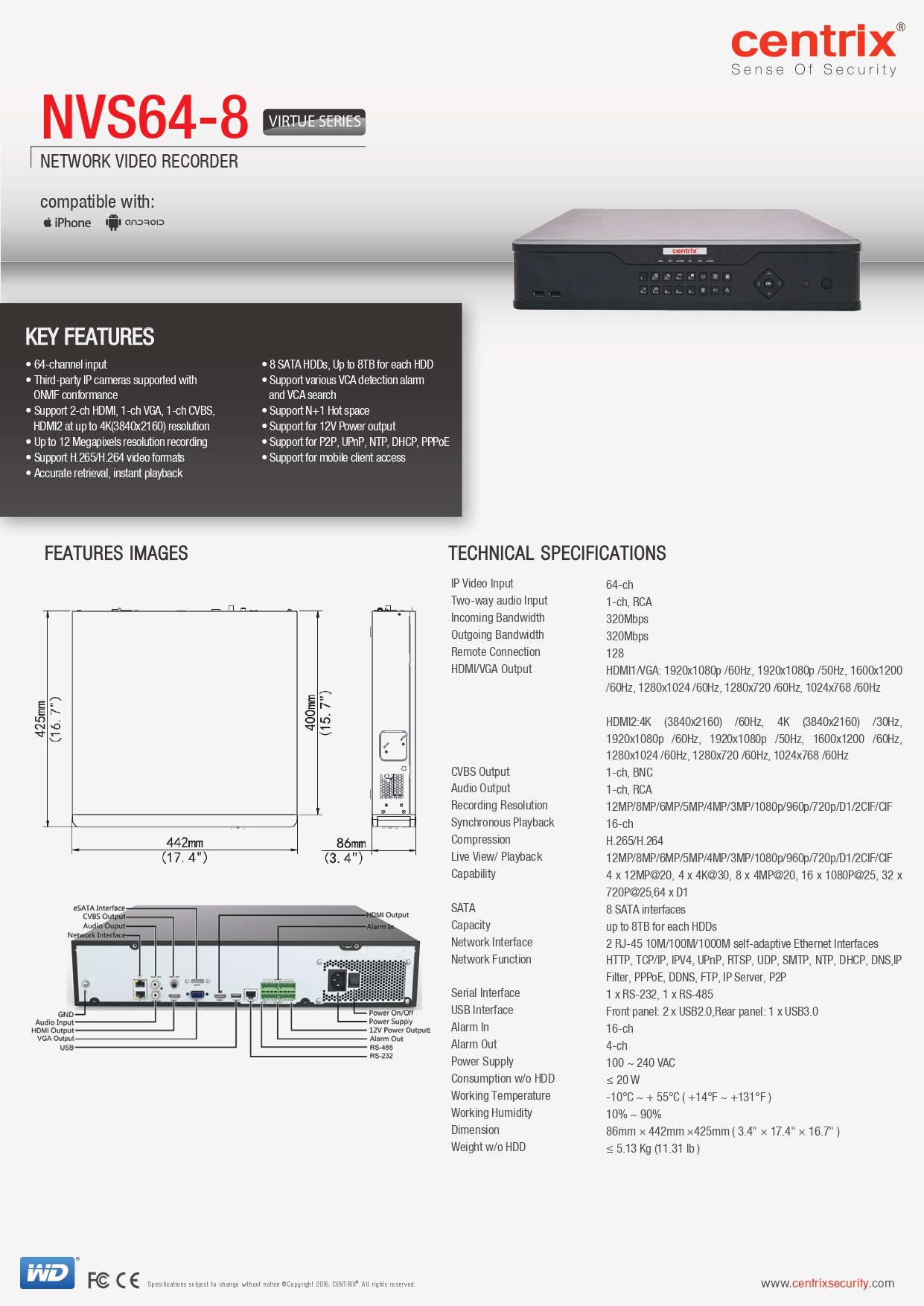

TECHNICAL SPECIFICATIONS
- IP VIDEO INPUT : 64-ch
- TWO-WAY AUSIO INPUT : 1-ch, RCA
- INCOMING BANDWIDTH : 320Mbps
- OUTBOING BANDWIDTH : 320Mbps
- REMOTE CONNECTION : 128
- HDMI/VGA OUTPUT HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200/60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60HzHDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz,1920x1080p /60Hz, 1920 x1080p /50Hz, 1600×1200 /60Hz,1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
- AUDIO OUTPUT : 1-ch, RCA
- RECORDING RESOLUTION : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- SYNCHRONOUS PLAYBACK : 16-ch
- COMPRESSION : H.265/H.264
- LIVE VIEW/PLAYBACK : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- CAPABILITY : 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@25, 32 x720p@25
- SATA : 8 SATA interface
- CAPACITY : up to 8TB for each HDD
- NETWORK INTERFACE : 2 RJ-45 10M/100M self-adaptive Ethernet Interface
- NETWORK FUNCTION : HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP
- Filter, PPPOE, DDNS, FTP, IP Server, P2P
- SERIAL INTERFACE : 1 x RS-232, 1 x RS-485
- USB INTERFACE : Front panel: 1 x USB2.0，Rear panel: 1 x USB3.0
- ALARM IN : 16-ch
- ALARM OU : 4-ch
- INTERFACE : 16 independent 100 Mbps PoE network interfaces
- SUPPORTED STANDARD : IEEE 802.3at, IEEE 802.3a
- POWER SUPPLY : 100 ~ 240 VAC
- CONSUMPTION W/O HDD : 20 W
- POE : Max 30W for single port; Max 54W in total ( 13.5W for each )
- WORKING TEMPERATURE : -10°C ~ + 55°C ( +14°F ~ +131°F )
- WORKING HUMIDITY : 10% ~ 90%
- DIMENSION : 86 × 442 × 425mm (3.4″ × 17.4″ × 16.7″ )
- WEIGHT W/O HDD : 5.13 Kg (11.31 lb )
