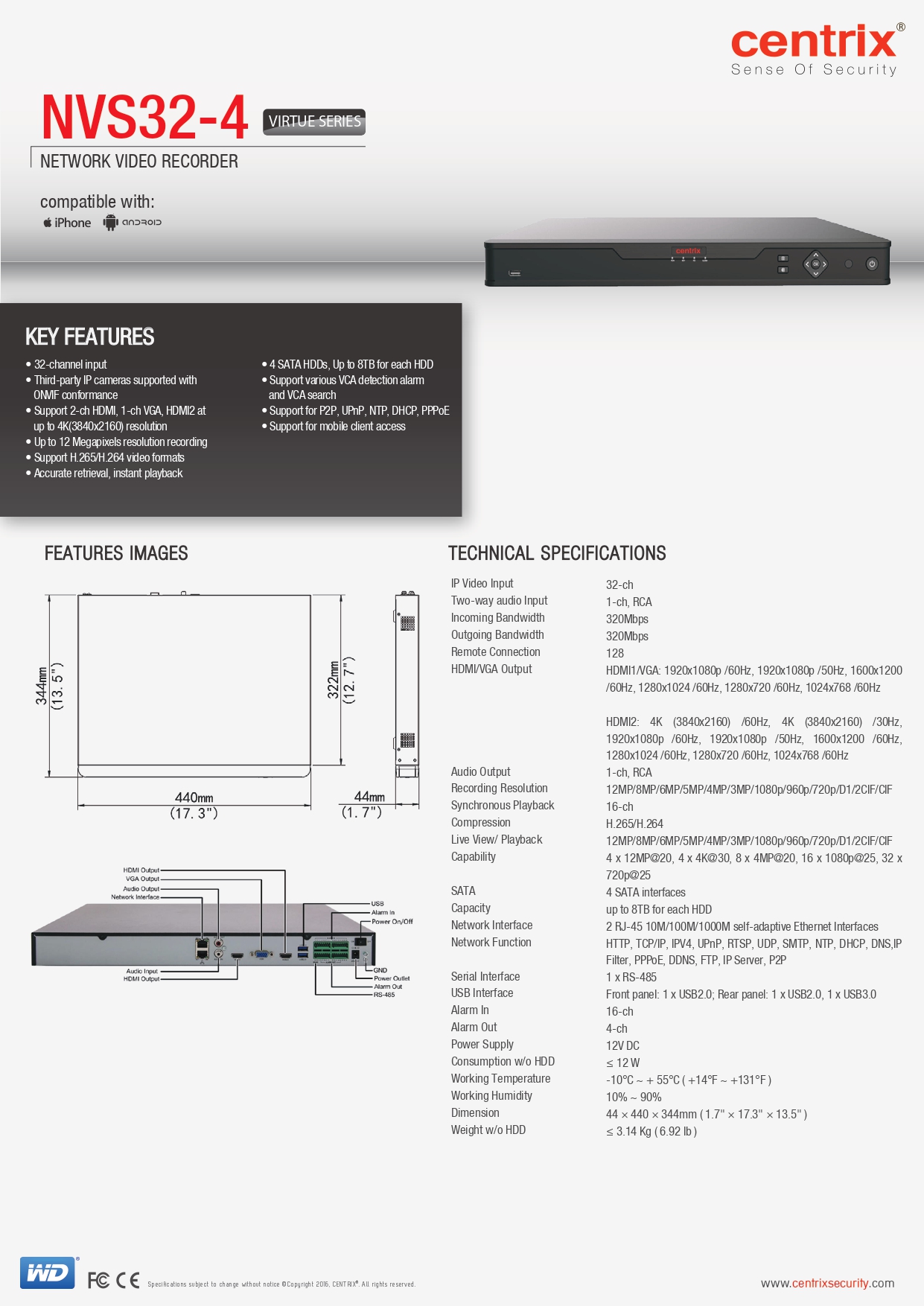

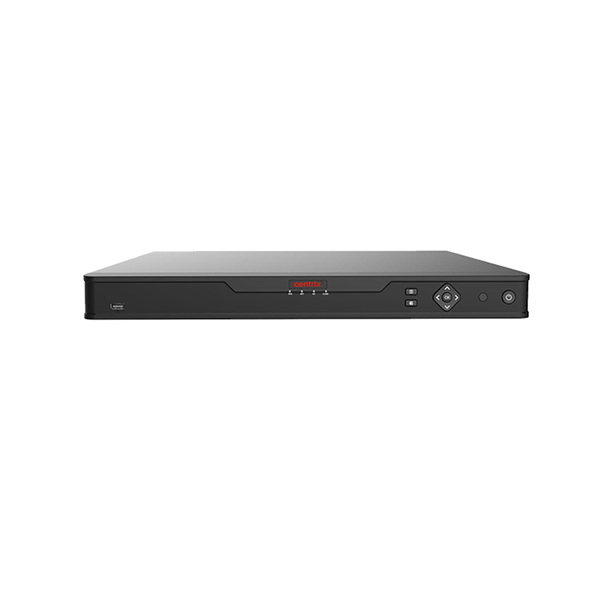

CENTRIX 32 Channel NVR NVS32-4

CENTRIX 32 Channel Network Video Recorder

Model: NVS32-4

• 32-channel input
• Third-party IP cameras supported with ONVIF conformance
• Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840×2160) resolution
• Up to 12 Megapixels resolution recording
• Support H.265/H.264 video formats
• Accurate retrieval, instant playback
• 4 SATA HDDs, Up to 8TB for each HDD
• Support various VCA detection alarm and VCA search
• Support for P2P, UPnP, NTP, DHCP, PPPoE
• Support for mobile client access

• IP VIDEO INPUT  :  32-ch
• TWO-WAY AUSIO INPUT  :  1-ch, RCA
• INCOMING BANDWIDTH  :  320Mbps
• OUTBOING BANDWIDTH  :  320Mbps
• REMOTE CONNECTION  :  128
• HDMI/VGA OUTPUT HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200
  /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
  HDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz,
  1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz,
  1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
• AUDIO OUTPUT  :  1-ch, RCA
• RECORDING RESOLUTION  :  12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• SYNCHRONOUS PLAYBACK  :  16-ch
• COMPRESSION  : H.265/H.264
• LIVE VIEW/PLAYBACK  :  12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• CAPABILITY  :  4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@25, 32 x
  720p@25
• SATA  :  4 SATA interface
• CAPACITY  :  up to 8TB for each HDD
• NETWORK INTERFACE  :  2 RJ-45 10M/100M self-adaptive Ethernet Interface
• NETWORK FUNCTION  :  HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P
• SERIAL INTERFACE  :  1 x RS-485
• USB INTERFACE  :  Front panel: 1 x USB2.0，Rear panel: 1 x USB3.0
• ALARM IN  :  16-ch
• ALARM OUT  :  4-ch
• INTERFACE   :  16 independent 100 Mbps PoE network interfaces
• SUPPORTED STANDARD   :  IEEE 802.3at, IEEE 802.3af
• POWER SUPPLY   :   100 ~ 240 VAC
• CONSUMPTION W/O HDD  :   20 W
• POE  :   Max 30W for single port; Max 54W in total ( 13.5W for each )
• WORKING TEMPERATURE  :  -10°C ~ + 55°C ( +14°F ~ +131°F )
• WORKING HUMIDITY  :  10% ~ 90%
• DIMENSION  :  86 × 442 × 425mm (3.4″ × 17.4″ × 16.7″ )
• WEIGHT W/O HDD  :  5.24 Kg ( 11.55 lb )
