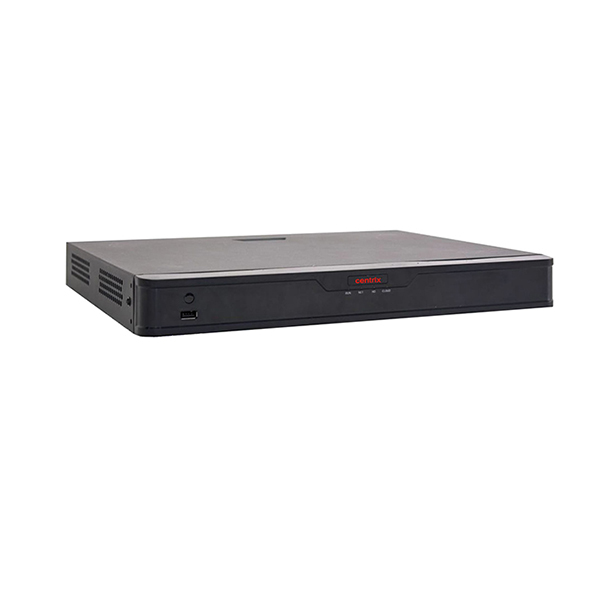

CENTRIX 16 Channel With PoE Network Video Recorder
Model: NVS16-2P
KEY FEATURES
- 16-channel input
- Plug & Play with 4 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
- Up to 12 Megapixels resolution recording
- Up to 8 Megapixels resolution recording
- Support H.265/H.264 video formats
- Accurate retrieval, instant playback
- 2 SATA HDD up to 8 TB
- Support various VCA detection alarm and VCA search
- Plug & Play with up to 8/16 independent PoE network interfaces
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for mobile client access
TECHNICAL SPECIFICATIONS
- IP VIDEO INPUT : 16-ch
- TWO-WAY AUSIO INPUT : 1-ch, RCA
- INCOMING BANDWIDTH : 160Mbps
- OUTBOING BANDWIDTH : 320Mbps
- REMOTE CONNECTION : 128
- HDMI/VGA OUTPUT HDMI : 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p/50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz,1024×768 /60HzVGA:1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz,1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
- AUDIO OUTPUT : 1-ch, RCA
- RECORDING RESOLUTION : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- SYNCHRONOUS PLAYBACK : 8-ch
- COMPRESSION : H.265/H.264
- LIVE VIEW/PLAYBACK : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- CAPABILITY : 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080P@25
- SATA : 2 SATA interface
- CAPACITY : up to 8TB for each disk
- NETWORK INTERFACE : 1 RJ-45 10M/100M self-adaptive Ethernet Interface
- NETWORK FUNCTION : HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P
- USB INTERFACE : Rear panel：2 x USB2.0,Front panel：1XUSB2.0
- ALARM IN : 4-ch
- ALARM OUT : 1-ch
- INTERFACE : 16 independent 100 Mbps PoE network interfaces
- SUPPORTED STANDARD : IEEE 802.3at, IEEE 802.3af
- POWER SUPPLY : 100 ~ 240 VAC
- CONSUMPTION W/O HDD : 20 W
- POE : Max 30W for single port; Max 54W in total ( 13.5W for each )
- WORKING TEMPERATURE : -10°C ~ + 55°C ( +14°F ~ +131°F )
- WORKING HUMIDITY : 10% ~ 90%
- DIMENSION : 380 mm × 315mm × 46 mm
- WEIGHT W/O HDD 2.48kg (5.47lb
