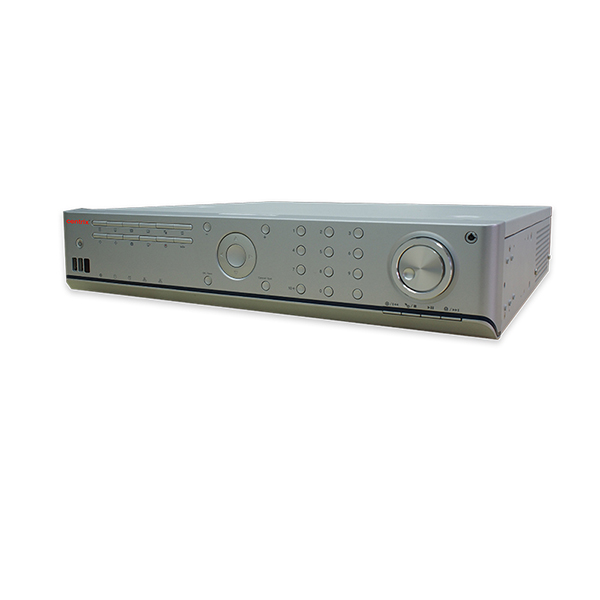

CENTRIX 16 Channel HDVS Network Video Recorder
Model: NVS160R
KEY FEATURES
- Linux embedded – safer solution against PC crashes and virus attacks
- 1 Click setup for more than 70 brands of IP cameras
- 1080p live display
- findNVR – free from router settings for web / mobile viewing
- Supports multiple compression format
- Camera I/O integration
- Real-time digital output and Email alert
- NTP server synchronization
- Point of Sale (POS)
- Alarm source for Centrix Central Management System
TECHNICAL SPECIFICATIONS
- Video Input : 8ch 5M/ 16ch 4M/ 16ch 3M
- Playback : 4ch 5M/ 4ch 4M/ 8ch 3M
- Base License : 16 ch
- Recording Camera : 1-16
- Available Drive Bays : 8 bays x 3.5”
- Max Storage per Bay : 4TB
- RAID Level : RAID 0,1,5,10
- Video Output : HDMI, VGA
- Output Resolution : 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
- Decoding Capacity : 120fps @1080p or 240fps @720p (H.264/MPEG4; MJPEG/MxPEG is with limited support)-
- Compression Format : H.264, MPEG-4, MJPEG, MxPEG (Depends on IP camera)
- Recording Performance : Total bitrate : 80Mbps
- Recording Type : Continuous record, record by schedule, manual record, event trigger record, digital input trigger record
- Audio & Video Recording : Audio & video recording in synchronization
- Auto Backup : Automatically backup the recorded video of the previous date to FTP
- Smart Search : General motion, missing object, foreign object, lose focus, camera occlusion
- Remote Live View Connections : Live view maximum 64 connections per server at the same time
- I/O interface : 4 x USB 2.0 and 1 x eSata
- LAN Port(s) : 2 x Gigabit Port, RJ-45
- LAN Speed : 10/100/1000 Mbps
- Voltage : AC 100V-240V, 3.5A-1.5A, 60-50Hz
- Power Consumption : 250W
- Temperature : 0°C ~ 40°C
- Humidity : 5% ~ 95%
- Dimension (w x l x h) : 262 mm x 137 mm x 300 mm
- Weight (Without Drive) : 9 kg (19.84lbs)
