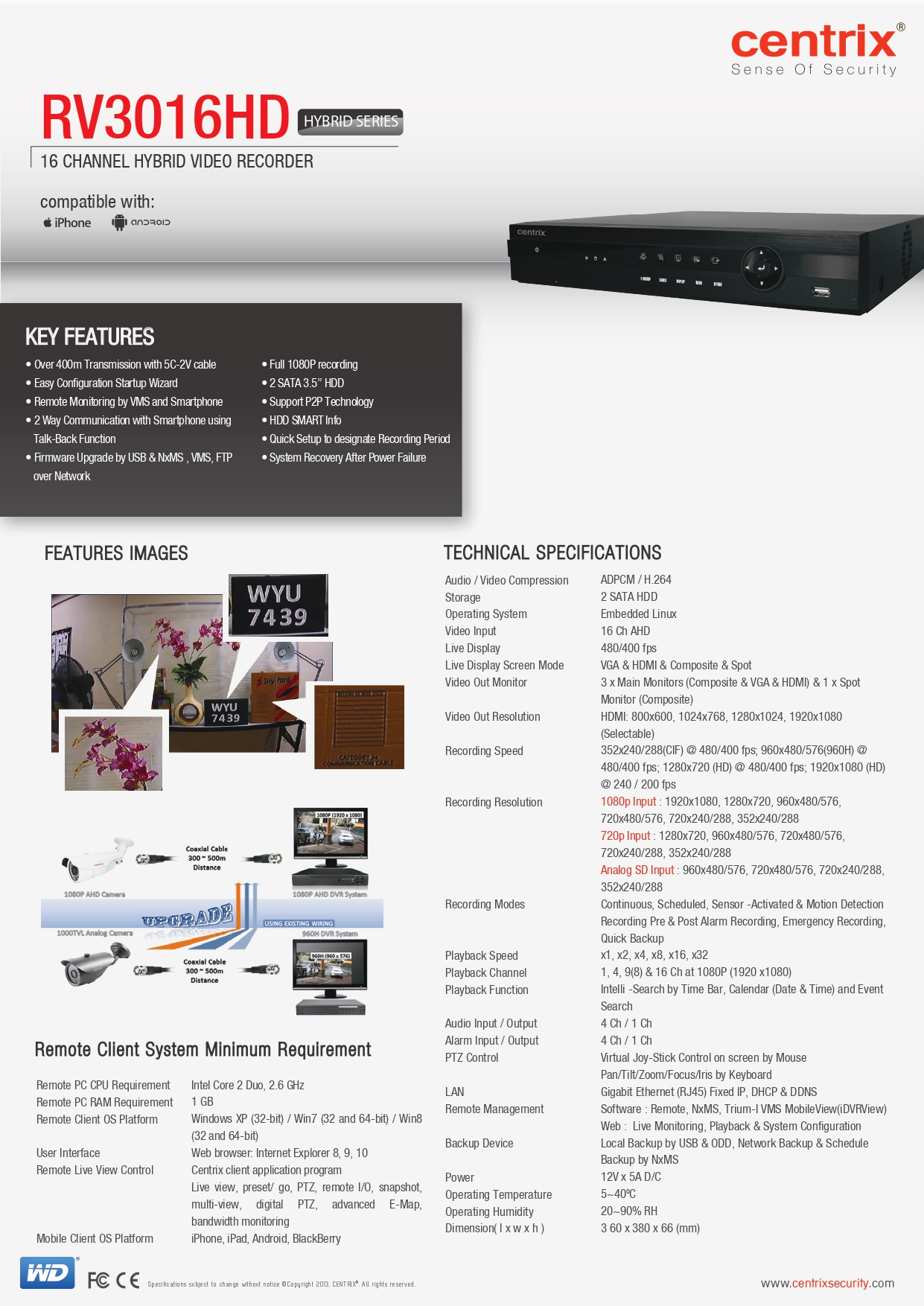

CENTRIX 16 Channel AHD DVR RV3016HD

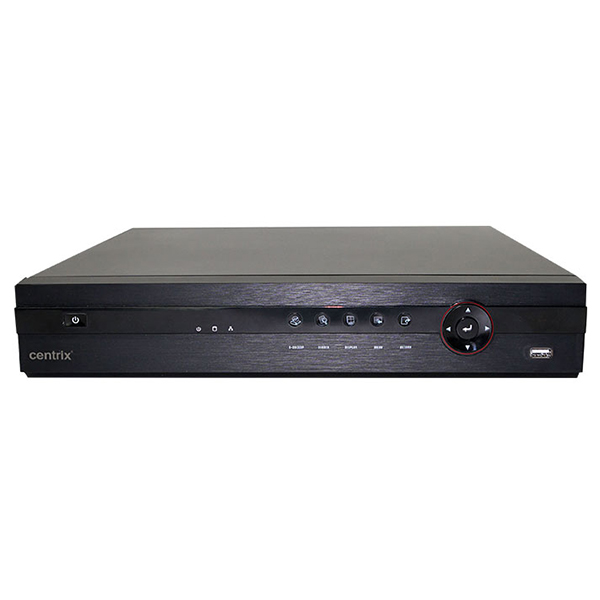

CENTRIX 16 Channel AHD DVR

Model: RV3016HD

• Over 400m Transmission with 5C-2V cable
• Easy Configuration Startup Wizard
• Remote Monitoring by VMS and Smartphone
• 2 Way Communication with Smartphone using
  Talk-Back Function
• Firmware Upgrade by USB & NxMS , VMS, FTP over Network
• Full 1080P recording
• 2 SATA 3.5” HDD
• HDD SMART Info
• Quick Setup to designate Recording Period
• System Recovery After Power Failure
• Support P2P Technology


• Audio / Video Compression  :  ADPCM / H.264
• Storage  :  2 SATA HDD
• Operating System  :  Embedded Linux
• Video Input  :   8 Ch AHD
• Live Display  :  480/400 fps
• Live Display Screen Mode  :  VGA & HDMI & Spot (or VGA & HDMI & Composite)
• Video Out Monitor  :  3 x Main Monitors (Composite & VGA & HDMI) & 1 x Spot
  Monitor (Composite)
• Video Out Resolution  :  HDMI: 800×600, 1024×768, 1280×1024, 1920×1080
  (Selectable)
• Recording Speed  :  352×240/288(CIF) @ 480/400 fps; 960×480/576(960H) @
  480/400 fps; 1280×720 (HD) @ 480/400 fps; 1920×1080 (HD)
  @ 240 / 200 fps
• Recording Resolution  :  11080p Input : 1920×1080, 1280×720, 960×480/576,
  720×480/576, 720×240/288, 352×240/288
  720p Input : 1280×720, 960×480/576, 720×480/576,
  720×240/288, 352×240/288
  Analog SD Input : 960×480/576, 720×480/576, 720×240/288,
  352×240/288
• Recording Modes  :  1080p Input : 1920×1080, 1280×720, 960×480/576,
  720×480/576, 720×240/288, 352×240/288
  720p Input : 1280×720, 960×480/576, 720×480/576,
  720×240/288, 352×240/288
  Analog SD Input : 960×480/576, 720×480/576, 720×240/288,
  352×240/288
  Recording Pre & Post Alarm Recording, Emergency Recording,
  Quick Backup
• Playback Speed  :  x1, x2, x4, x8, x16, x32
• Playback Channel  :  1, 4, 9(8) & 16 Ch at 1080P (1920 x1080)
• Playback Function  :  Intelli -Search by Time Bar, Calendar (Date & Time) and Event
  Search
  Search
• Audio Input/Output  :  4 Ch / 1 Ch
• Alarm Input/Output  :  4 Ch / 1 Ch
• PTZ Control  :  Virtual Joy-Stick Control on screen by Mouse
  Pan/Tilt/Zoom/Focus/Iris by Keyboard
• LAN  :  Gigabit Ethernet (RJ45) Fixed IP, DHCP & DDNS
• Remote Management  : Software : Remote, NxMS, Trium-I VMS MobileView(iDVRView)
  Web : Live Monitoring, Playback & System Configuration
• Backup Device  :  Local Backup by USB & ODD, Network Backup & Schedule
  Backup by NxMS
• Power  :  12V x 5A D/C
• Operating Temperature  :  5~40ºC
• Operating Humidity  :  20~90% RH
• Dimension ( I x W x H )  :  360 x 380 x 66 (mm)
