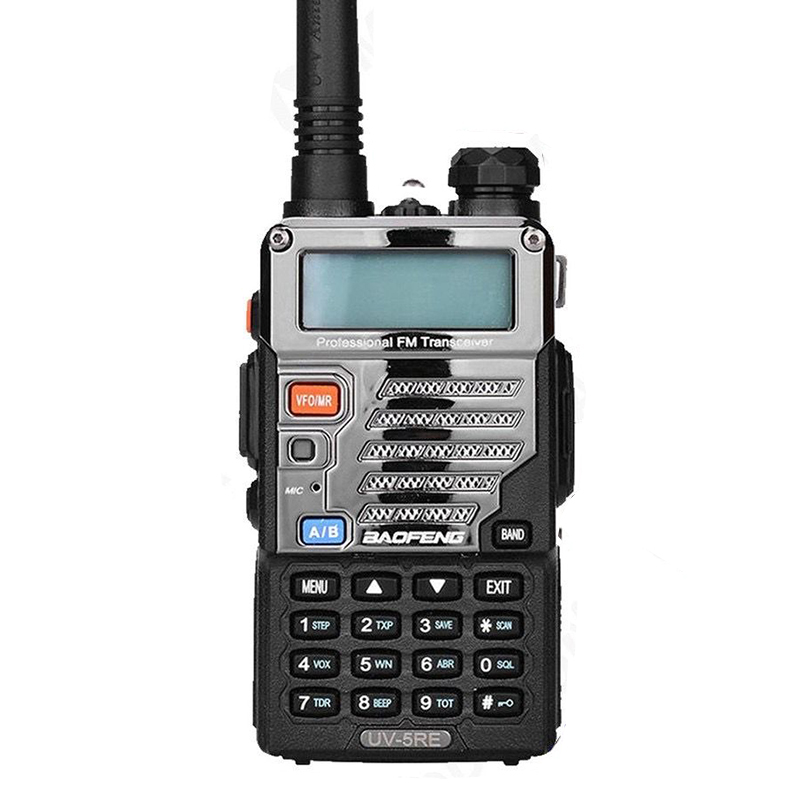

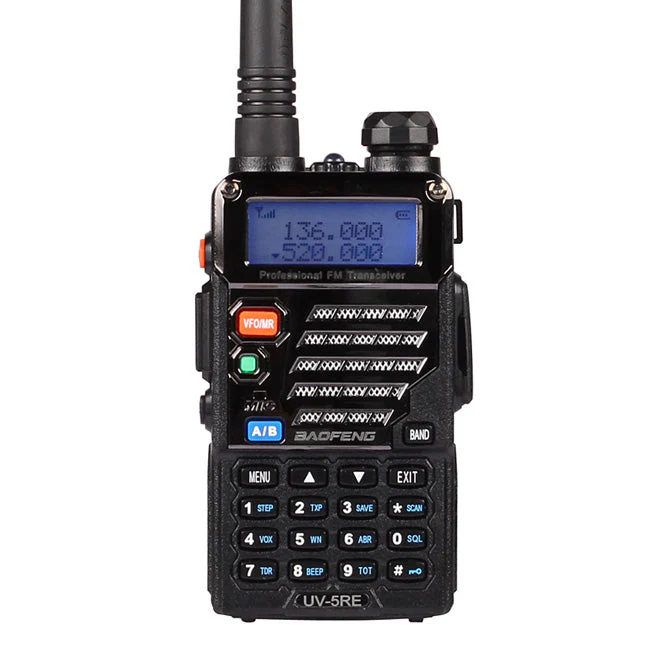

BAOFENG WALKIE TALKIE
Model : UV-5RE
BAOFENG UV-5RE The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
Functions:
- Frequency Range: 136-174 / 400-480MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 4 /1Watts
- 128 Channels
- 50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (65.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- Hight /Low RF Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- ROGER SET
Specifications:
- Item number UV-5RE
- General
- Frequency Range 65-108MHz(FM Receive only)
- 136-174MHZ and 400-480MHZ (TX/RX)
- Channel No. 128
- Frequency Stability ±2.5ppm
- Antenna High gain DualBand antenna
- Antenna Impedance 50O
- Operating Voltage DC 7.4V
- Mode of operation Simple or semi-duplex
- Dimension(W x H x D) 100 x 52 x 32 mm
- Weight 250g(including battery, antenna)
- Transmitter
- Output power 4W / 1W (Max 5W)
- Modulation Mode 16kFF3E / 11kFF3E
- Maximum deviation <5kHz(Wide) / <2.5kHz(Narrow)
- Spurious Radiation <7µW
- Adjacent Ch. power =-65dB(Wide) / =-60dB(Narrow)
- Pre-emphasis characteristics 6dB
- Current =1.6A(5W)
- CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
- Intermediation sensitivity 8-12mv
- Intermediation distortion <10%
