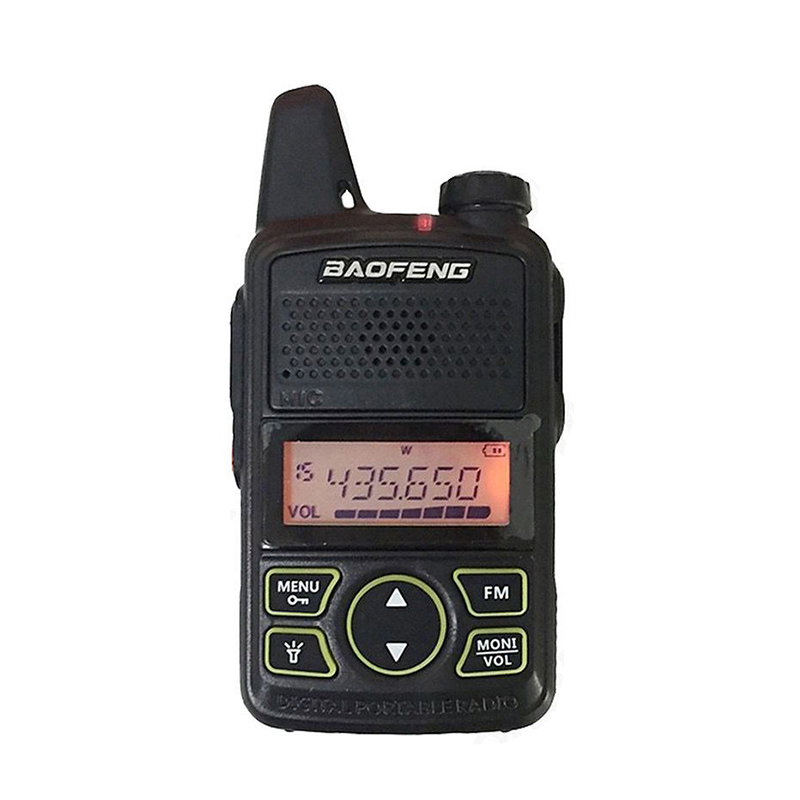

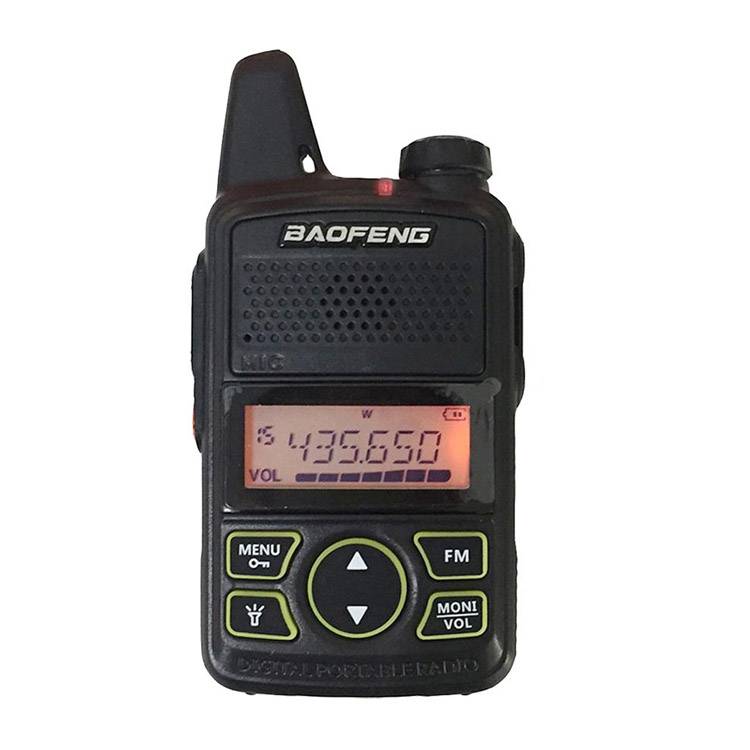

BAOFENG WALKIE TALKIE
Model : BF-T1

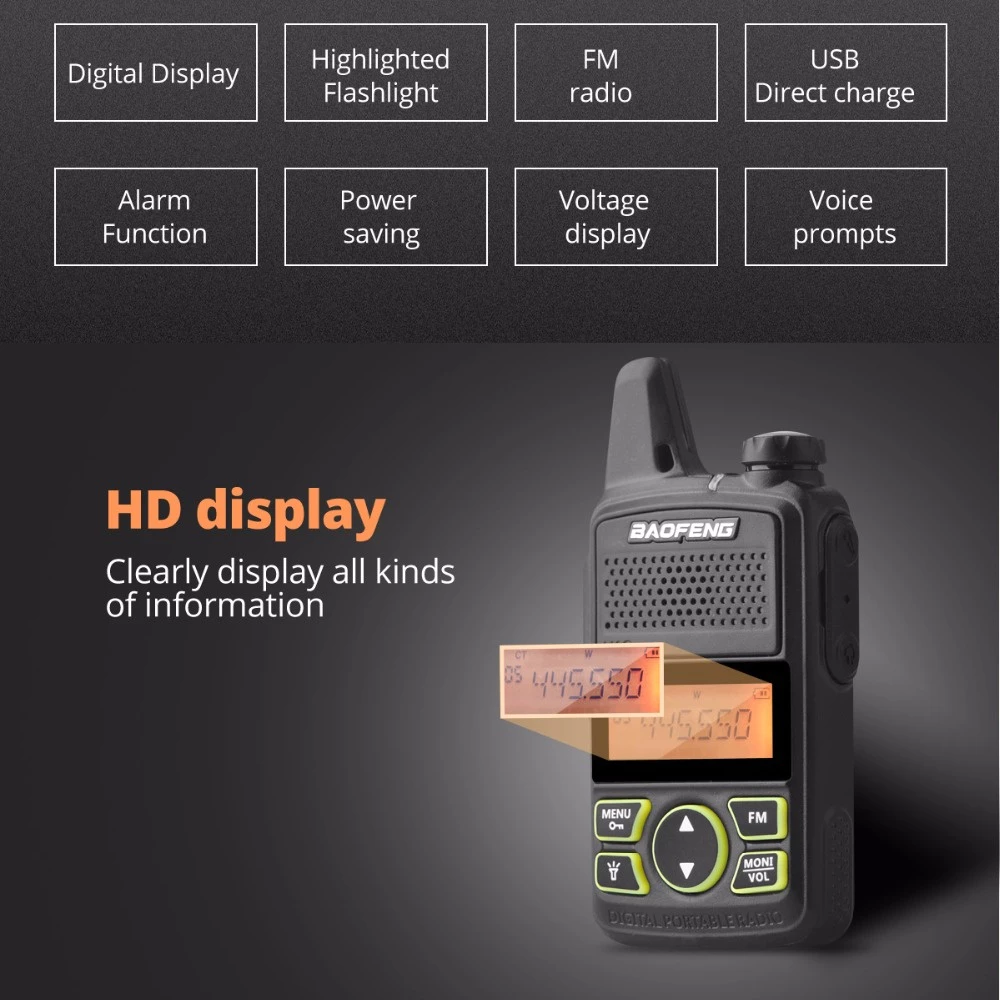

Functions
- Broadcast FM radio receiver (65-108Mhz)

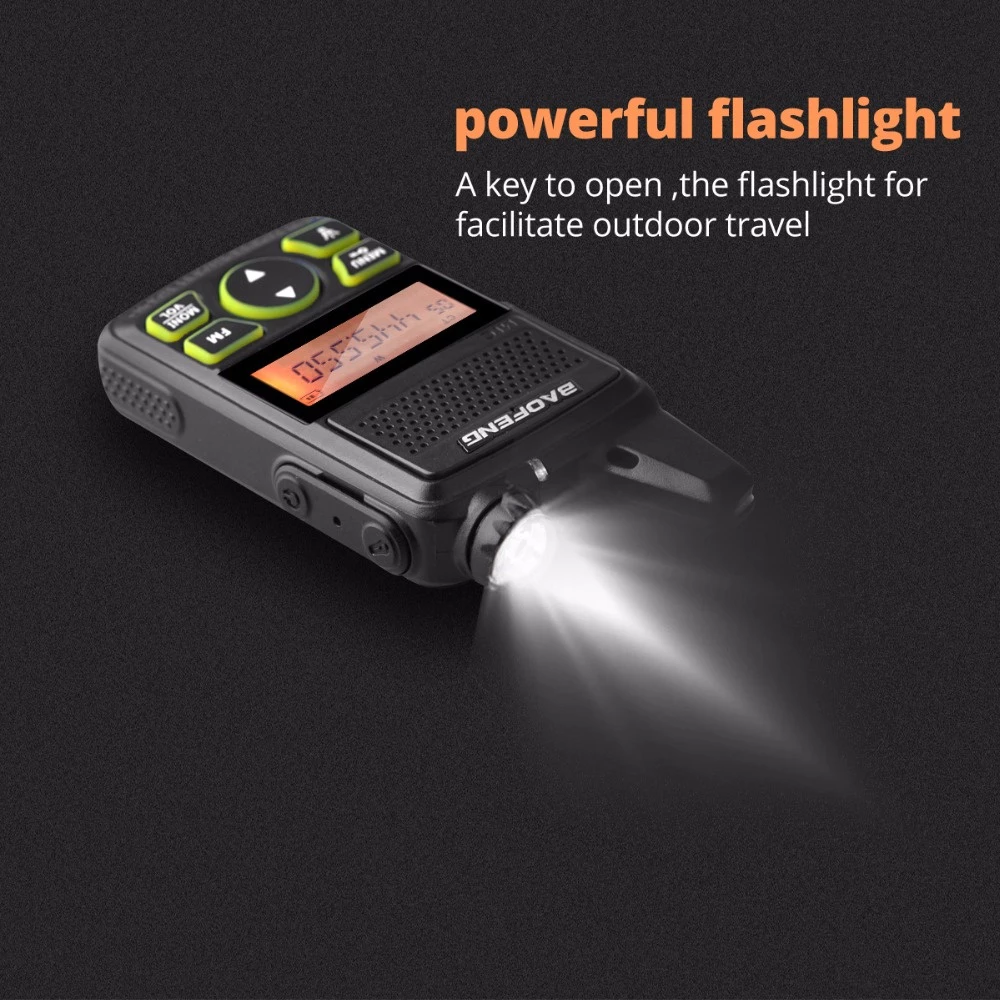

- Alarm and built-in LED flashlight
- Max 20 channels
- Time count down (0.5 / 1hr / … / 8hrs)
- Voice prompt
- VOX (voice activated transmission)
- 50 CTCSS tone / 104 DCS code / nonstandard tone available
- Tail tone elimination
- Battery saving
- Width / Narrow band selection
- SOS call notice
- PC programming (programming cable not included)
- Frequency Range UHF: 400-470MHz
- Channel No. : 20
- Frequency Stability : ±2.5ppm
- Step Frequency : 12.5 / 25Kz
- Antenna Impedance : 50O
- Operating Voltage : DC 3.7V
- Work Temperature : -20C to +60C
- Battery Capacity : H-1500mAH (Li-ion battery)
- Battery Life : About 12 Hours
- Dimension W x H x D : 108 x 55 x 21 mm including antenna
- Weight : 99g
- Output power 0.5W / 1W
- Modulation Mode 16kFF3E / 11kFF3E
- Maximum deviation =5kHz(Wide) /=2.5kHz(Narrow)
- Spurious Radiation =7.5µW
- Adjacent Ch. power =-65dB(Wide) / =-60dB(Narrow)
- Audio Distortion < 5%
- SNR = -45dB / = -40dB
- CTCSS/DCS Frequency deviation (W/N Band) 0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow)
- Intermediation sensitivity 8-12mV
- Transmitting Current = 1000mA
- Receiver
- Sensitivity < 0.25µ V (12dB SINAD)
- Audio Power 1W
- Inter modulation Interference Resistance = 65dB (W) , = 60dB (N)
- Adjacent channel Selectivity (W/N Band) = 65dB (W) , = 55dB (N)
- Audio Distortion 5%
- Receiving current = 380 mA
